It integrates mechanical, hydraulic, electrical, automation, and other technologies, and it has many advantages such as high crushing efficiency, low production cost, convenient maintenance and adjustment, and excellent crushing product size. It is mainly used in secondary and tertiary crushing in metal mines and construction sand and stone processing. It is not afraid of narrow terrain and harsh environments, and it is the latest generation of products in the mining construction industry and metal mining industry.
PRODUCT PARAMETERS

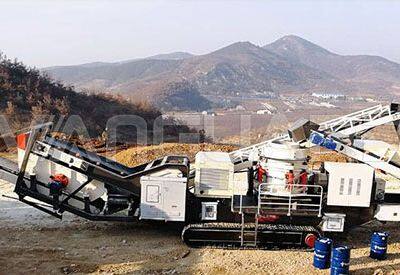

Crawler type mobile cone crushing plant
| CP200 crawler type mobile cone crushing plant
| CP300 crawler type mobile cone crushing plant
| CP400 crawler type mobile cone crushing plant
|
Model
| Items and specifications
| power (kw)
| Items and specifications
| Power (kw)
| Items and specifications
| Power (kw)
|
Crushing equipment
| Equipment Model
| CP200
| /
| CP300
| /
| CP400
| /
|
Triangle belt
| Standard
| /
| Standard
| /
| Standard
| /
|
Motor
| Standard
| 160
| Standard
| 250
| Standard
| 315
|
Return screen
| Equipment
| 1536
| /
| 1542
| /
| 1542
| /
|
Vibration motor
| Standard
| 3.06
| Standard
| 3.06
| Standard
| 3.06
|
Frame
| Hydraulic crawler chassis
| Standard
| /
| Standard
| /
| Standard
| /
|
Boat frame
|
| /
|
| /
|
| /
|
Upper sieve conveyor
| Specification
| B1000*6m
| 7.5
| B1000*6.5m
| 7.5
| B1200*6.5m
| 7.5
|
Drive method
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
|
Main conveyor
| Specification
| B1000*9m
| 11
| B1000*10m
| 11
| B1200*10m
| 11
|
Drive method
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
|
Under the screen conveyor
| Specification
| B1000*6m
| 7.5
| B1000*6.2m
| 7.5
| B1200*6.2m
| 7.5
|
Drive method
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
|
Transfer conveyor
| Specification
| B650*2m
| 3
| B650*2m
| 3
| B650*2m
| 3
|
Drive method
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
|
Return conveyor
| Specification
| B500*9m
| 5.5
| B500*11m
| 5.5
| B500*11m
| 7.5
|
Drive method
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
|
Single power system
| Walking engine
| Yuchai diesel engine
| 106
| Yuchai diesel engine
| 106
| Yuchai diesel engine
| 145
|
Dual power system
| Generator set
| Yuchai diesel engine
| 300
| Yuchai diesel engine
| 500
|
|
|
Electrical System
| Electric control cabinet
| Host soft-start, CHINT electrical components.
| /
| Host soft-start, CHINT electrical components.
| /
| Host soft-start
| /
|
Matching
| Belt Conveyor Folding Cylinder
| Belt Conveyor Folding Cylinder
| Belt Conveyor Folding Cylinder
|
Hydraulic pumps, valves, stations and tubing accessories
| Hydraulic pumps, valves, stations and tubing accessories
| Hydraulic pumps, valves, stations and tubing accessories
|
Dimensions(m)L×W×H
| Working size17*4.8*4.1
| Transport size17*3.3*3.6
| Working size19*5*4.8
| Transport size19*3.6*3.8
| Working size19.5*5.1*4.9
| Transport size19.5*3.7*3.9
|
Weight (t)
| Single-power model45tDual-power models47t
| Single-power model55tDual-power models57t
| 65t
|
Power (kw)
| Single-power model: 200.62kw(not including walking engine power),Dual-power models: 200.32kw(not including generator set power)
| Single-power model: 290.62kw(not including walking engine power),Dual-power models: 290.62kw(not including generator set power)
| 357.62kw(not including generator set power)
|
Special Design of different models of the mobile crushing plant will be available upon request.
STRUCTURAL FEATURES
Equipped with a cone crusher with excellent performance suitable for medium and fine crushing, special crushing wall and concave design, supplemented by curved cavity and hydraulic cavity clearing system, improve the crushing efficiency and effectively reduce the easy operation loss.
It is equipped with a PLC control system to keep full cavity continuous feeding, reasonable configuration, a smooth process, high production efficiency, good product shape, and the final product is a high-quality cube.
It adopts a fully automatic crushing control system, which quickly responds to iron (overload) and automatically releases reset protection to ensure continuous, stable, and efficient production.
Large eccentricity, high swing frequency, and layer compression crushing make the equipment has a high capacity, large reduction ratio, and a good grain shape.
PRODUCT APPLICATION
Processed Material:Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble.etc
