Zf Two-Speed Gearboxes for Machine Tools Spindle, 2K120 2K250, 2K600

Product Description

Product Description
Elite HFT2S two-speed gearbox mainly used in machine tool main-spindle drives, test benches and applications which high torque is needed.
Features:
With precise reduction mechanism and high efficiency, decrease or extend the input speed of motor to achieve machining requirement and save energy. Two speed mechanism wide the machining range, increase the flexibilities of machine tool and machining precision, extend the output power and increase machining torque of motor effectively: low output power and high output torque for hard materials and high speed for soft materials, compact design of helical gearing, provide better efficiency than spur gear with lowest noise and optimized space. As well, the modular design with different adapter design could suitable for different brands of motors.
Advantages:
• Preponderant performance/Low backlash/Low vibration value/Low temperature rising/Reliable transmission performance
• Short delivery time
• Competitive price

1	Materials	All torque-bearing gearbox components are made of top-quality casehardened and tempered steels.
2	Gearbox structure	All sun gears and planet wheels are case-hardened and ground. The ring gears are made of high-strength tempered steel, which is also used for the forged planetary supports. Well thought-out construction principles ensure an even load distribution of the individual stages and therefore a high performance density. In addition, the gearboxes are characterised by an integral design optimised to reduce the number of components to a minimum, thereby also minimising the number of sealing points.
3	Bearings	All rotation parts run on rotation element bearings .Ball bearings are used to support the input gearing,cylindrical Roller Bearings for the planet wheels and tapered Roller Bearings are used on the output gearing .
4	Seals	Travel drives and winch drives use floating oil seals, slewing drives use rotating glyd ring seals.

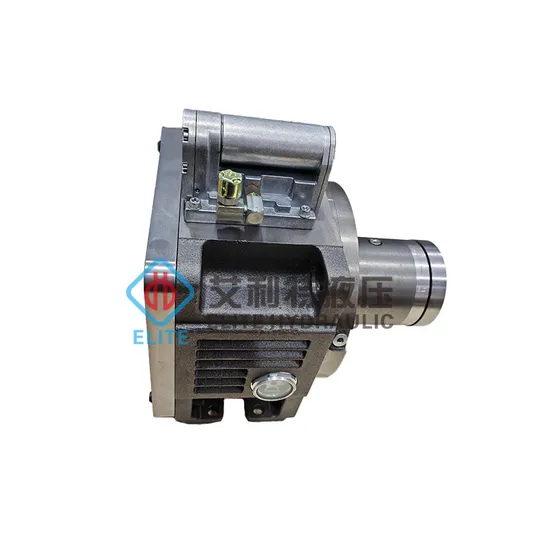

Detailed Photos
Product Parameters

Model	Output Torque	Ratio	Motor frame size	Shaft diameter	Fitted key	Fitted key length	REPLACE MODEL
	Nm	1:		Mm	Mm	Mm
HFT2S0250D400	250	:4	132	48	14*9	90	ZF 2K250

Application
Company Profile

In conclusion, ELITE Hydraulic offers quality, value, and professional power transmission solutions that cater to a wide variety of industries. With their expertise, experience, and commitment to customer satisfaction, you can be sure that you're in safe hands when working with them. Whether you need travel gearbox, electrical drive, travel drive,slew gearbox,winche gearbox,cutter gearbox,truck mixer gearbox,twin shaft mixer or other hydraulic transmission solutions, you can trust ELITE Hydraulic to provide you with the best possible solutions. Contact them today to learn more about their power transmission products and services.

---
