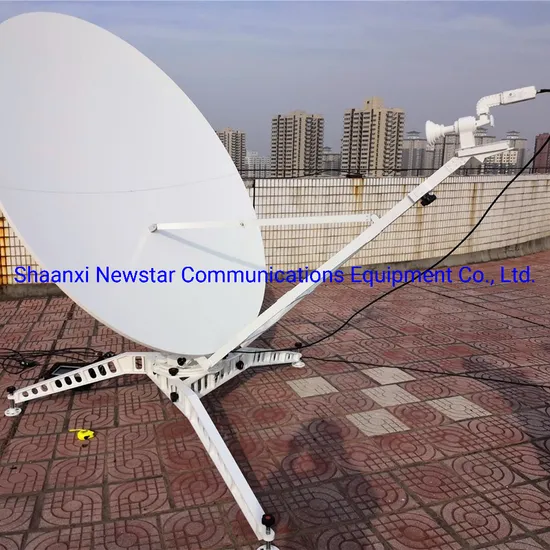

1.8m C, Ku Band Carbon Fiber Flyaway Uplink Antenna

Product Description

Characteristics: Conform with Intelsat, Eutelsat Requirements; Carbon fiber reflector, high strength, light weight; Good cross polarization, low sidelobe, high efficiency; Convenient and quick dismounting & adjustment; Without tools, assembly & pointing star within 15 minutes; Adopt the "Three-proof " measures, modern production process, meet various field work environment; 4 Pieces panel, narrow&light in collection.
Standard configuration
Feed and duplexer, antenna panel, antenna turntable and support, azimuth and elevation adjusting device, compass and special packing;
Optional
BUC, LNB, Modem, soft waveguide.
RF specifications

Model		NS-FM-180
Operating Frequency GHz		Ku band		C band
	Rx	10.95~12.75		3.625~4.2
	Tx	13.75~14.5		5.85~6.425
Antenna gain dBi	Rx	≥45.6dBi		35.8dBi
	Tx	≥46.7dBi		39.5dBi
Polarization		Linear		Linear
XPD, dB(on axis ) -1dB		≥35		≥35
		≥30		≥30
Port isolation	Tx-Rx	≥85dB
VSWR		1.25:1
Tx Power capacity, KW		1kw/port				5kw/port
-3dB Beamwidth, Mid-Band		0.92°	0.78°			2.87°		1.93°
Feed Interface		WR-75	WR-75		CPR229G		CPR-159G/137G
Feed Insertion Loss,dB		0.35	0.35		0.15		0.17
First Sidelobe,dB 90% Peaks under Following Envelop ,dBi		-14 29-25lgθ(1°≤θ<20°)				-14 29-25lgθ(1°≤θ<20°)

Mechanical specifications

Antenna diameter	1.8m
Antenna type	offset
Material	Carbon fiber
Antenna weight	Net weight ≤64Kg, Gross weight:≤150
Antenna package	Package dimension (mm) Reflector: 1000×530×1050, gross weight: 60kg Back strut: 1500×660×600, gross weight: 88.5kg
Antenna travel range AZ EL Pol	360° 5°~90° ±90°
Antenna drive mode	Manual
Penal quantity	4 pieces

Environment specifications

Working temperature	-40ºC~60ºC
Relative Humidity	100%
Solar radiation	1135Kcal/h/m²

---
