Xjl-250 Rubber Strainer / Rubber Straining Filter Machine

Product Description

XJL-250 Hydraulic Fully Automatic Rubber Filter Strainer Product Description Introduction:
The XJL-250 Rubber Strainer is meticulously engineered to eliminate impurities from rubber compounds or reclaimed rubber, ensuring the highest standards of material purity and quality. Features: 1) The versatile rubber strainer offers adaptability for various applications, including single head, double head, hot feed, and cold feed operations, catering to diverse industry needs.
2) The head is equipped with a mechanical cutter that operates hydraulically, ensuring simple and effortless operation that enhances efficiency and reduces downtime.
3) The robust machine body features a sophisticated temperature regulation device. The screw and bushes are enhanced through nitrogenation treatment, providing superior strength and remarkable wear resistance.
4) A wide range of cold feed rubber strainers with varying specifications are available, offering users the flexibility to select the optimal solution for their specific requirements.
Product Parameters

Type	XJL-120	XJL-150	XJL-200	XJL-250
Screw diameter(mm)	120	200	200	250
Length-diameter ratio(L/D)	4.8:1	4.8:1	5:1	4.5:1
The highest rotation speed of screw(r/min)	45	45	40	40
Main motor power(kw)	22	37	75	110
Steam pressure(MPA)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Cooling water pressure(MPA)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Max. production capacity(kg/h)	180	400	800	1600

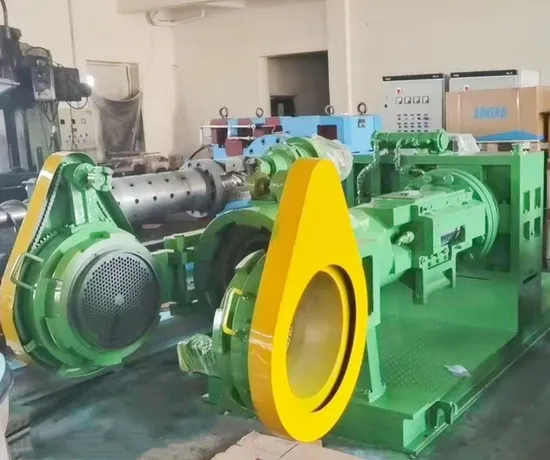

Detailed Photos
