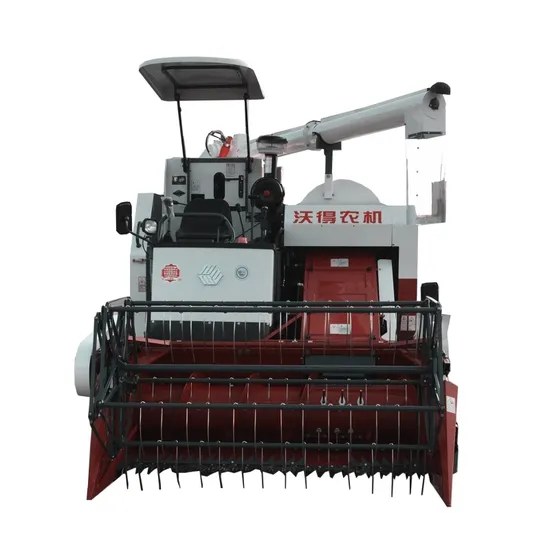

Hot Axial Flow Threshing World 88HP Mini Rice Harvester

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
4LZ-4.0E
Application
Rice, Corn, Wheat, Soybean
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
QS, GMP, ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Warranty
One Year
Combine Harvester
Crawler Type Harvester for Rice and Wheat
Applications
Rice or Wheat Harvesting
Feeding Capacity
5kg/S
Cutting Width
2800mm or 3200mm
Threshing Cylinder
540X1330mm
Efficiency
0.5-1.0ha/H
Engine
Changchai 88HP
Gear Box
Zkb65 Made by World Factory
Work Dimension L*W*H (mm)
4900*2890*2700
Keywords
4lz-4.0e Mini Rice Harvester Machine with 1.4m3 Gr
Transport Package
in Container
Specification
ISO
Trademark
WORLD
Origin
China
HS Code
84295100
Production Capacity
5000 PCS/Year

Product Description

agriculture crawler type combine harvester for rice and wheat
Main Features:
1.Equipped with turbocharged engine 64.7kw with stronger power and lower fuel consumption.
2.ZKB65 hydraulic gearbox with 40C HST ensures harvester working more smoothly.
3.Rubber track 450x90x51mm brings less ground clearance.
4.The length of threshing cylinder reaches 2050mm, which makes grain less loss.
5.Reverse mechanism is the best solution to solve block of conveyor.
6.Min. Ground clearance reaches 300mm, harvester can work in deep mud fields.
Specifications:
MODEL UNIT 4LZ-4.0E
TYPE FULL-FEED,TRACK COMBINE
ENGINE MODEL 498BT/BZT/L, 4C6-88M22
TYPE WATER-COOLED,4-CYLINDER, DI-INJECTION, VERTICAL DIESEL
RATED POWER KW/HP 64/88
RATED ROTATION SPEED RPM 2650
FUEL TANK CAPACITY L 130
OVERALL DIMENTIONNS MM 5100x2890x2700
WEIGHT KG 2800
CUTTING WIDTH MM 2000/2200
FEEDING CAPACITY KG/S 4
GROUND CLEARANCE MM 300
WORKING EFFICIENCY HA/H 0.5-0.9
TYPE OF BLADE V TYPE/LEFT AND RIGHT
TYPE OF CUTTING BAR AUGER SCREW CONVEYING
THRESHING TYPE AXIAL FLOW TYPE WITH BEAT BARS
THRESHING CYLINDER MM 620X2050
FILTRATE TYPE VIBRATING SIEVES+CENTRIFUGAL FAN
TRACK SIZE MM 400/450/500X90X51
TRACK GAUGE MM 1150
TYPE OF GEARBOX HYDRAULIC TYPE WITH HST
