Butyl Cold Feed Rubber Extruding Machine

Product Description

butyle rubber tape /sheet production line

NO.	Item	quantity (set)
1	90(16D) extruder	1
2	plate head	1
3	round head	1
4	conveyor	1
5	winding plate	1
6	cutting machine and piling device	1

debugging workshop

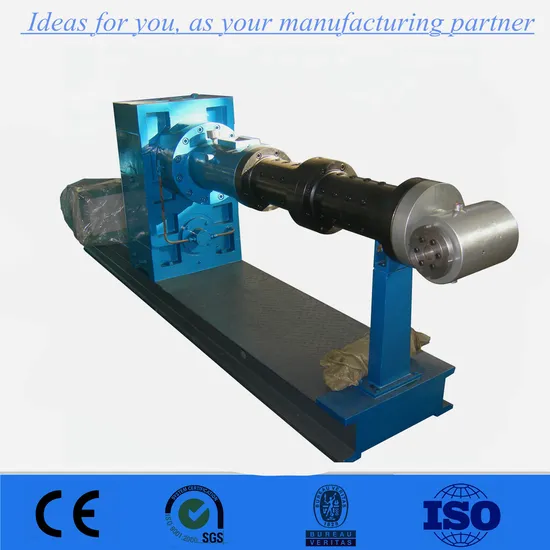

Specifications for rubber extruder : Cold feed extruder used in the production of various types of article sealing section,hose,the film production.

iTEMS	Diameter of screw mm	L/D Ratio	Speed of screw max(r/min)	Driving power KW	Maxmun output of production Kg/h	Weight KG
XJD-75*16	75	16	60	37	120	1200
XJD-90*16	90	16	55	55	300	3200
XJD-120*16	120	16	50	110	600	5200
XJD-150*16	150	16	45	135	900	6500
XJW-45*16	45	16	70	7.5	50	500
XJW-50*16	50	16	65	7.5	60	600
XJW-75*16	75	16	60	37	120	1200
XJW-90*16	90	16	55	55	300	3200
XJW-120*16	120	16	50	110	600	5200
XJW-150*16	150	16	45	135	720	6500
XJW-75*16	200	14	35	185	1500	8500

certificate:
Order Guide:
1. Ship date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training technicians and operators for operation and maintenance of the equipment.
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: One year guaranteed repair and lifelong tracking service,with parts provided.
8. All the parameters of the machine on metric units and in English.
9. Package: standard export wooden pallet.


Welcome to visiting our factory!

Qingdao Evertech Industry Co.LTD

More detail please contact us freely.

Thanks and best regards.

Victor Wang

---
