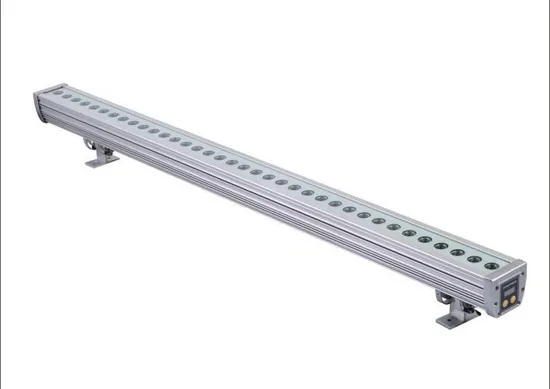

LED high power PAR light is It adopts in 24/36 PCS of high power LED lights. 24/36 PCS of high power LEDs are with focus lens and large-angle. It is a new generation green high technology product. The light color is abundant. It brings people new vision sense, which makes people feel they are in a changeable color world. Full waterproof structure, which is IP65. It is suitable for varied warm humidity interior and exterior environments.
Nice design insures no attenuation of high power LED project for long time. Reasonable design can be adjusted project angle random. It is easy to install that the base is with holes.
It need to be adjusted for under-angle so as to achieve the best optical effects; Widely used for building light and decorative effects can be RGB color replacement, acceptance DMX512 signal control; Machine can be connected simultaneously, it do one of 1 W and 3 W specifications, but also to do all kinds of monochrome, white, red, green, yellow, blue and purple.
This is applied to government light project, commerce location, airport, underground crossroad and so on.
| Specification: |
| Model | LED 2007 (24*1W) | LED 2007A (24*3W) | LED 2007AM (24*3IN1) | LED 2007B (36*1W) | LED 2007C (36*3W) |
| Housing Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Housing Color | Black/Silver White | Black/Silver White | Black/Silver White | Black/Silver White | Black/Silver White |
| Aperture Cover | Tempered Glass 5mm | Tempered Glass 5mm | Tempered Glass 5mm | Tempered Glass 5mm | Tempered Glass 5mm |
| Operating voltage | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC |
| Power | Switch Power Supply | Switch Power Supply | Switch Power Supply | Switch Power Supply | Switch Power Supply |
| LED current | 320mA | 680mA | 680mA | 320mA | 680mA |
| Control Modes | Direct DMX 512, Master/slave. Stand alone | Direct DMX 512, Master/slave. Stand alone | Direct DMX 512, Master/slave. Stand alone | Direct DMX 512, Master/slave. Stand alone | Direct DMX 512, Master/slave. Stand alone |
| DMX Channel | 3CH | 3CH | 3CH | 3CH | 3CH |
| Control panel | Digital 3 characters alphanumeric | Digital 3 characters alphanumeric | Digital 3 characters alphanumeric | Digital 3 characters alphanumeric | Digital 3 characters alphanumeric |
| Connector | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) |
| NO.of LED | 24*1W LEDS (8R/ 8B/ 8G) | 24*3W LEDS (8R/ 8B/ 8G) | 24*3IN1 LEDS | 36*1W LEDS (12R/ 12B/ 12G) | 36*3W LEDS (12R/ 12B/ 12G) |
| LED Life Time | 80000-100,000 hours | 80000-100,000 hours | 80000-100,000 hours | 80000-100,000 hours | 80000-100,000 hours |
| Beam Angle | 25°/30°/45°/60° | 25°/30°/45°/60° | 25°/30°/45°/60° | 25°/30°/45°/60° | 25°/30°/45°/60° |
| Power Consumption | 28W | 80W | 80W | 45W | 120W |
| Light Projecting Distance | 10-20M | 10-30M | 10-35M | 10-30M | 10-40M |
| IP Rating | Outdoor, IP 65 | Outdoor, IP 65 | Outdoor, IP 65 | Outdoor, IP 65 | Outdoor, IP 65 |
| Operating Temperature | -20ºC+45ºC | -20ºC+45ºC | -20ºC+45ºC | -20ºC+45ºC | -20ºC+45ºC |
| Dimensions | L1000*W120*H120 mm | L1000*W120*H120 mm | L1200*W120*H120 mm | L1500*W120*H120 mm | L1500*W120*H120 mm |
| Weight | 4.20KGS | 4.80KGS | 4.80KGS | 6.30KGS | 6.30KGS |
| Packing Dimension | L1060*W145*H145 mm | L1060*W145*H145 mm | L1280*W145*H145 mm | L1560*W145*H145 mm | L1560*W145*H145 mm |
| Gross Weight | 4.60KGS | 5.20KGS | 6.0KGS | 7.0KGS | 7.0KGS |
| Compatibility: |
| 1. Color Range: 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
| 2. Dimming 0-100%with regulated constant color control |
| 3.Strobe: 10 Flashed per second (any color) |
| 4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable. |
| 5. 3CH DMX Value | CH 1 _ Red (1-255, Dimmer, from dart to light) |
| CH 2 _ Green (1-255, Dimmer, from dart to light) |
| CH 3 _ Blue (1-255, Dimmer, from dart to light) |
| Each Package Included: |
1 * LED 2007 LED Wall Washer with
Signal Cable :3-PinXLR DMX In and Out + Water Power cable: Power Cable screw water proof connectors in and out (2ftcable) |
| 1*Power cable: 3 Pin plug and screw water proof connector on other side. (5ft = 1.5m) |
| 1 * User Manual |
| 2* pyrocondensation.cannula (0.66ft = 20cm) |
| 1* Waterproof connector's cover for Power cable |
