Hshc 30 Ton Manual Chain Block Hoist Lifting Tools Diesel Engine Chain Block Lever Hoist

Product Description

HSHC 30 ton manual chain block hoist lifting tools diesel engine Chain block Lever hoist
PRODUCT SUMMARY

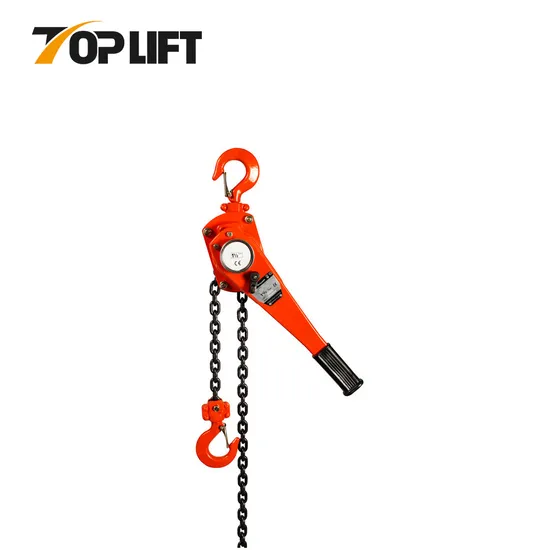

The manual lever chain hoist features a rugged steel frame, load chain hardened for strength and durability and compact design that's perfect for tight spaces. Enclosed gear housing provides protection that makes it suitable for outdoor use. Guide slots guard against jamming and slipping.
DESCRIPTION * Capacity 30T.
* Bearings inside load chain sprocket increase mechanical efficiency.
* Drop forged hooks and hook holders, heat treated to ensure the safety and durability.
* Gear assembly provide smooth operation by little hand efforts.
* Chain guides provide smooth chain operation .
* T80 grade high tensile lifting chain make more effective.
* lightweight steel construction with durable powder coat finish.
* CE CERTIFIED.
* One year guarantee.
TECHNICAL PARAMETERS

HSH-C LEVER BLOCKS
Model	HSH-7.5C	HSH-10C	HSH-15C	HSH-30C	HSH-60C
Rated load(T)	0.75	1	1.5	3	6
Test load(T)	1.125	1.5	2.25	4.5	9
Standard lift(m)	1.5	1.5	1.5	1.5	1.5
Min. distance between two hooks(mm)	147	196	244	372	382
Efforts required at capacity(N)	140	186	234	363	370
No. of load chains	1	4	1	1	2
Diameter of load chain(mm)	6	6	7.1	10	10
Dimensions(mm) A	148	148	163	191	191
B	128	128	148	181	244
C	295	310	335	405	550
D	256	256	368	368	368
E	26	26	30	34	47
Net weight(kg)	7.3	7.8	10.4	17.2	26

FAQ
1.How about after sales service?
We supply free spare parts to replace your hoists. Besides, we can send your the video to guide your engineers.
2.How to ensure the quality?
Before packing hoist, our workers will send hoists to inspection center well checked.And we take detailed pictures for each hoist before packing.You can offer our serial No.And then know the detailed products.
3.If it is spare parts?
We are manufacturing 60% spare parts in our factory to control high quality, and the other 40% spare parts supplier are from our long term supplier.Before stocking in warehouse, we have strict inspection for each parts.
4.If it is warranty?
We can provide 1 years warranty for electric parts, 2 years for mechanical parts.

---
