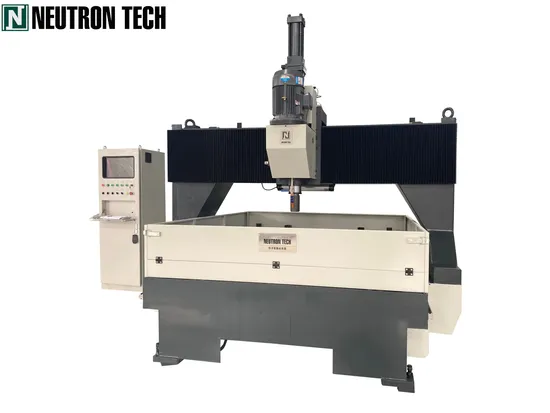

CNC Steel Plate Drilling CNC Mobile Machine Made in China

Product Description

Product parameters

Item	Details	value
Size of work piece	Thickness	Max.80mm
	Width ×length	1000mm×1650mm one piece
		825mm×1000mm two pieces
		500mm×825mm four pieces
Axis	Quick change chuck	Morse Taper 3#,,4#
	Diameter of Drilling head	Φ12mm-Φ50mm
	Variable speed mode	Stepless speed adjustment
	rotation speed	120-560r/min
	max. feeding stoke	180mm
	Feeding	Hydraulic Stepless speed adjustment
Clamping	Clamping thickness	15-80mm
	Number of clamps	12 pieces
	Clamping force	7.5KN
	Clamping start	Foot switch
Cooling water	Type	Forced circulation
Hydraulic	clamping	6MPa(60kgf/cm2)
	Volume	100L
Air force	Air supply	0.4MPa(4kgf/cm2)
Servo Motor	Axis	5.5KW
	Hydraulic pump	2.2KW
	Cooling pump	0.25KW
	Servo motor of chip removal device	0.4KW
	Servo motor of X axis	1.5KW
	Servo motor of Y axis	1.0KW
Size	L×W×H	About 3160×3900×2780mm
Weight	Machine	4000kg
	Chip removal system	400kg
Control axis	X,Y ,Z
Distance	X	1650mm
	Y	1000mm
Max speed	10000mm/min

Working temperature: 0ºC ~ 40ºC
Working humidity: ≤75%
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz±1HZ
Product display
Other products
Certifications
Packing & Shipment
FAQ: Q: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephon

Q: When can you arrange shippment?
A: We usually arrange shippment in 10-30days
Q: Can you provide training for operation CNC machines?
A: Yes, free training in our factory is available.
Q: What you can do if my machines have problems?
A: a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
Q: How about your price?
A: Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q: What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase. Please contact your Z-MaT sales representative for details .
Q: What's the delivery time, and what's the package?
A: Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.

---
