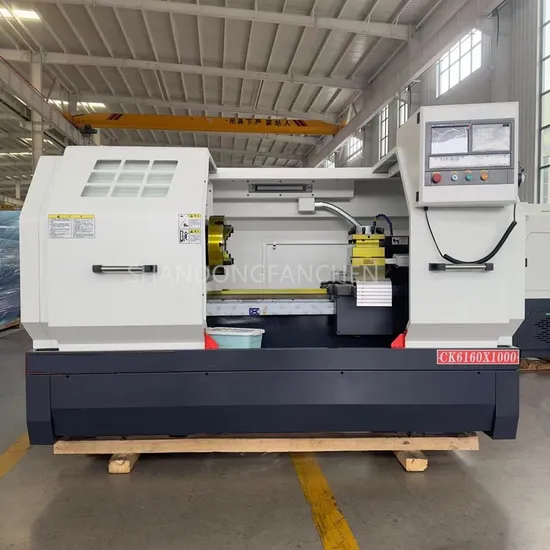

Ck6160 Horizontal Hard Rail Precision CNC Lathe Large Mechanical Processing Equipment Large Through-Hole

Product Description

specifications	CK6160
Max. swing over bed	Φ600 mm
Max. swing over cross slide	Φ395 mm
Width of guideway	400mm
system	GSK
Max. Turning diameter (disc type workpiece)	600mm
Knife holder type	Four station electric knife holder
Spindle bore	Φ82mm
Spindle nose	A2-6(A2-8)
Taper of spindle front hole	Metric 90mm 1 : 20
Spindle speed	150-1800rpm variable speed spindle frequency control
Spindle motor power	7.5 kw
Chuck type	Manual 3-jaw chuck
Chuck size	250 mm
X/Z axis travel	320mm, 3000 mm
X/Z axis torque	5/7.5 N.m
X/Z axis rapid feeding speed	6/8 m/min
X/Z axis position accuracy	0.005 mm
X/Z axis repeatability	0.005 mm
Tool size	25x25 mm
Tailstock sleeve dia.	Φ75 mm
Tailstock sleeve travel	150 mm
Tailstock taper	MT5

1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ

---
