Automatic Pharmaceutical Suppository Filling & Sealing Production Line Suppository Liquid Filling Machine

Product Description

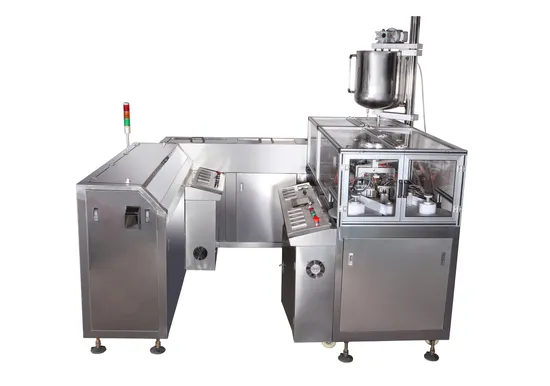

HY-U automatic suppository filling machine
Main application:
The full-automatic suppositories production unit is a use of PLC do the whole control and use of pneumatic mode for the automatic production line source of power. This equipment combining foreign advanced technology and domestic actual situation, the design is novel, the operation is simple, is a highly efficient and stable production unit of automatic suppositories. Its leading position in domestic technical content. In the process of development, we need to consider the user everywhere, adjustable and accuracy can confirm the work, with different parameters, the equipment can mold production of different shapes and specifications of the suppositories can sue different packing material(PVC, PE, PVC/AL/PE Compound film), eliminating unqualified products etc.
Working Principle
The rolled plastic sheet material(PVC or PVC/PE) is pressed positively to blow and make a statue to take shap,and enter into filling procedure automatically,stirred equally drug fluid to nul nutshell automatically through high precise dosing pump,and is sheard into multi-stripiso -segment.Then it will become solid cork granulation through much time cryo-stereotypia which will realize conversation from fluid to solid.At last,it will be produced to end product suppository by mending form,sealing,beating batch number and shearing working procedure.
Mian Technical Parameters:

Production capacity	8000-12000 pieces/hour
Dose per unit	0.5-5 ml
Deviation	±1%
Adapting base material	Emi-synthesis fatty acid lipo-glycerol, glycerol gelatin, carbowax
Suppository shape	Bullet, torpedo, duck-mouth
Storing vessel volume	50 L
Air pressure	0.6Mpa
Water consumption	800KG/h
Air consumption	1.5m3/min
Working voltage	50Hz AC 380V
Total powder	7.5kw
Machine weight	1500kg
External dimension	3470*3480*2230mm

Technical characteristic
1,Using insert filling,accurate in position,non-dribbling drug,non-hanging wall,high precise in counting.
2,Be wide in suitability,can be used to fill high gluing degree gelation group and the traditional Chinese medicine ware.
3.Using PLC written formula control and industry grade person-machine interface operation,possessing characteristics of high degree automation/convenience in adjustment/high precise thermo-control/reliability in action and steady in runing etc.
4,Having big volume storing fluid vessel,laying homeothermia/stirring and fluid surface autocontrol assemblly
5.Relieving worker's physical labor strength for lower position of filling drug fluid ,laying cycling to supply fluid and keeping thermo equipment of channel pathways,and it will ensure drug fluid not be coagulated when machine stop.
6.One side operation and better sight.
Equipment advantage:
1.PLC testing function:through on-line monitoring function of PLC operation breakdown self check alarm and show the cause of the problem in synchronization easy operation personnel to remove the faults.
2.Filling with static system in part
Due to trace pharmaceuticals filled in close to bolt shells in the area will flowing under the action of electrostatic force along the empty shell to climb a fraction of a high wall could reach the bolts sealing parts,so will influence the quality sealing behind.
3.Mixing barrel speed regulation system
Due to the different drug matrix series of different fixed mixing effect may be unable to make drugs before filling in the mix of finished product to affect bolt drug content.
4.The cooling speed regulating system
Due to the different drug ingredients may need different cooling speed;The cooling speed too slow and low will cause the whole machine production efficiency down;The cooling speed is high may lead to drug because suddenly drop in temperature and spilt so the cooling speed can be adjusted to.
5.Shear grain number can adjustable system
According to customer demand for products such as 4/5/6/7 set grain number.The machine can produce PVC/PE production.

---
