US$47,000.00-58,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Station Maunal Turret
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Max Dia.Swing Over Bed
1000mm
Max Dia.Swing Over Cross Slide
610mm
Max.Length of Work-Piece
1500mm
Maximum Machining Length
1250mm
Pipe Threading Range
Φ100-327
Spindle Center Height
500mm
Power of Spindle Motor
22kw
Spindle Speed
Vf2 Steps 30-130/65-260
Traverse of Cross Slide
520mm
Max.Traverse of Turret
300mm
Tailstock Quill Travel
300mm
Tailstock Quill Dia/Taper
160mm /Morse No.6
Chuck
Φ780 4-Jaw Electric Chuck
Transport Package
Plywood Case with Steel Base
Production Capacity
1000/Year
Packaging & Delivery
Package Size
480.00cm * 225.00cm * 182.00cm
Package Gross Weight
11500.000kg
Product Description
Product Description

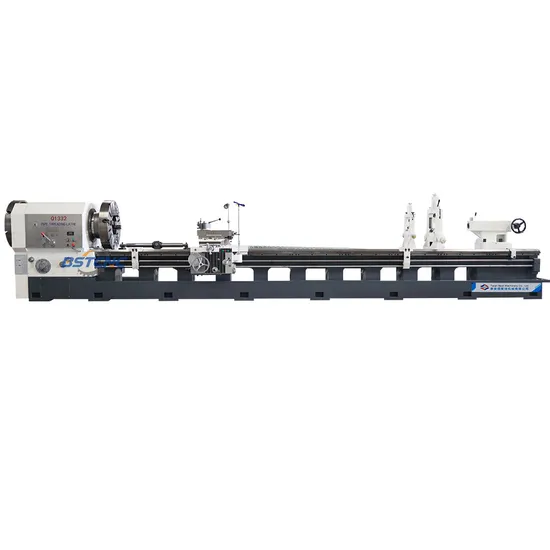

This series of pipe thread lathes is mainly used to process internal and external threads of pipes, and they can also be used as an ordinary lathe to process the outer circle, inner hole, and end face of shaft, pipe, and disk parts. This machine tool is widely used in the petroleum industry, which can process and repair parts such as drill pipes, joints, and casings. It is also used for the thread processing of various pipes and drill pipes in industries such as coal, chemical engineering, water conservancy, and geological exploration.
Product Parameters
| Item | UNIT | Q1332 |
| Max dia.swing over bed | mm | 1000 |
| Max dia.swing over cross slide | mm | 610 |
| Max.length of work-piece | mm | 1500 |
| Maximum machining length | mm | 1250 |
| Pipe threading range | mm | Φ100-327 |
| Width of bed | mm | 755 |
| Spindle bore | mm | 335 |
| Spindle center height | mm | 500 |
| Power of spindle motor | KW | 22 |
| Spindle speed | RPM | VF2 STEPS 30-130/65-260 |
| Z axis feed grade/range | Mm/r | 32/0.1-1.5 |
| X axis feed grade/range | Mm/r | 32/0.05-0.75 |
| Carriage rapid traverse speed | mm/min | 3740 |
| Cross slide rapid traverse speed | mm/min | 1870 |
| Metric thread grade/range | mm | 23/1-15 |
| Inch thread grade/range | T.P.I | 22/28-2 |
| Traverse of Cross slide | mm | 520 |
| Max.traverse of turret | mm | 300 |
| Tailstock quill travel | mm | 300 |
| Tailstock quill Dia/taper | | 160mm /Morse NO.6 |
| Chuck | | Φ780 4-jaw electric chuck |
| Overall dimensions(L*W*H) | mm | 4700x2150x1620 |
| Machine weight | T | 11.5 |
Standard configuration:
1-With 4 jaws double electric chuck (780mm) ;
2-With 4 station manual tool post and manual tailstock ;
3-With Whole casting bed ;
4-Voltage 380V/220V/415V ,3 Phase;
Optional configuration:
1-Steady rest ,follow rest , back steady rest;
2--Digital readout ;
3- Processing length: 2000mm,3000mm,4000mm;
