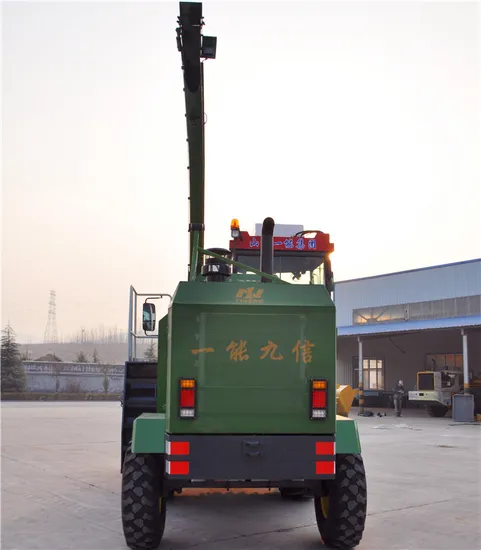

Green and Yellow Forage Silage Harvester (9qsz2400)

Product Description

Applicaion: To be used for harvesting ripening period and full ripeness period of corn, sunflower, sorghum and vanilla and other high stalk crops.
Working Mode:Cutting header conveyor roller and sawing plate harvest crops, and orderly delivery the crop stalk, leaf, and spike mixture into the feeding roller , the feeding roller clamping material into cutterheader and throw the chopped material.
Functions and Features:
1) Cutting header conveyor rolloer and saw plate can adapt all stem crops harvesting, do not need to on line.
2) Crops cutting length can be adjusted by changing the blade quantity.
3) The cast cylinder can rotate 360 degrees. This device can promptly and accurately load the chopped material into the accompanying carriages.
4) Walking system: it is the gear CVT walking system.
5) The crops height not lower than 1.4 meter.
6) Cutting stubble height:lower than 150mm.
7) Unique grain crushing and rubbing device can make further materials fragmentation and get the best domestic cutting and rubbing effect.
8) Oversize fuel tank: can contactly working for more than 22 hours. (Fuel tank capacity is about 400 liter)
9) Turning support: Can make the cast cylinder softly rotate.
10) Wheel disc chopper, it is actually upgrade on the basis of chaff cutter.
11) The moving blade quantity: 4pcs or 6 pcs or 9pcs.
12) The fan blade quantity is 12 pieces.
Main Technical Parameter:

Items	Parameters
Operation way	Auto-run unlevel harvest
Cutting table type	vertical cylinder
Operation Range	2400mm
Operation speed	4-8km/h
Efficiency	20-60T/h
Cutting Length	7-50mm(adjustable)
Loss rate	≤3%
Min cutting height	≤150
Engine Power	140kw(190hp)
Dimension	7100*2850*4730mm
Overall weight	6900kg

Remark: Heavy chassis for standard
Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.

---
