Steel C and U Shape Roll Making Line Light Stud Truss Frame Form Machine

US$6,900.00
1 set
US$6,500.00
2 set
US$6,200.00
3+ set

Basic Info.

Model NO.
Steel C and U Shape Roll Making Line Light Steel S
Tile Type
Colored Steel
Certification
CE, ISO
Condition
New
Customized
Customized
Usage
Roof, Wall, Floor
Transmission Method
Electric
Transport Package
Standard Export Package
Specification
4000mm*1000mm*1400mm
Trademark
ZHONGKE
Origin
Botou
HS Code
8455221000
Production Capacity
30sets/Month

Packaging & Delivery

Package Size
400.00cm * 100.00cm * 140.00cm
Package Gross Weight
2000.000kg

Product Description


Product Description
What is the light gauge keel stud and track CU channel steel roll forming machine?
CU channel steel roll forming machine is widely used around the world. This galvanized steel c channel forming mahcine with good design,can produce different sizes C U channel on one machine.this kind of light gauge keel stud track c channel steel roll forming machine will save the space for the factory. And the products this machine produced is mainly used for the drywall and the ceiling structure. As a basic material, c channel is widely used for many aspects as assistant supporters.
Part Details
Item Name
Specification
Material
Raw Material
Galvanized steel
Thickness
1-3 mm
Machine
Roller Station
9
Shaft Material
60 mm
Shaft Material
45# steel with 0.05mm chrome
Roller Material
CR12
Machine Size
About 4.5*0.8*1.3m
Machine Weight
About 1.8 ton
Machine Color
As customer request
Working Speed
10-20 m/min
Cutter
Hardness
50-65 HRC
Cutting Tolerance
± 1mm
Material
CR12
Operate
Hydraulic cutting
Power
Driving Way
Chain 1 inch
Main Power
5.5KW
Pump Power
4KW
Voltage
380v 50hz 3P, or Customize as Customer' request
Control System
PLC Brand
Delta made in Taiwan
Screen
Touchable Screen
Language
Chinese, English or Add customer' need

Product Overviews
Our Products
Equipment list:Process Drawing
Company Profile

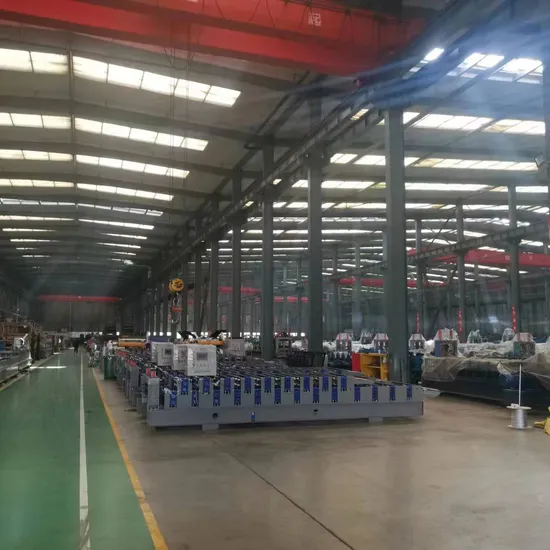

Our factory is a professional Roll Forming Machine manufacturer with 17 years experience,we have 100 well trained workers and 20,000m'(square meters) workshops.Specializing in the production of various types of tile press equipment,the development and production of automatic intelligent control tile press equipment production line, C type steel, dust collector anode plate and other equipment.Our factory can design and produce various special-shaped cold-bending forming equipment according to the different needs of users.
Why Choose Us

Packaging & Shipping
FAQ
1. who are we?We are based in Hebei, China, start from 2016,sell to North America(10.00%),Southeast Asia(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),South Asia(10.00%),South America(7.00%),Africa(6.00%),Oceania(5.00%),Central America(5.00%),Eastern Europe(4.00%),Western Europe(2.00%),Domestic Market(1.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Light Gauge Buildings Steel Frame (LGBSF) Roll Forming Machine,Roll Forming machine,Glazed Tile Forming Machine,Roof Panel Wall Panel Molding Machine,C/Z Steel Machine4. why should you buy from us not from other suppliers?Our factory is a professional Roll Forming Machine manufacturer with 17 years experience, we have 100 well trained workers and 20,000 (square meters) workshops.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,EXW,FAS,FCA,DDP,DAF;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
