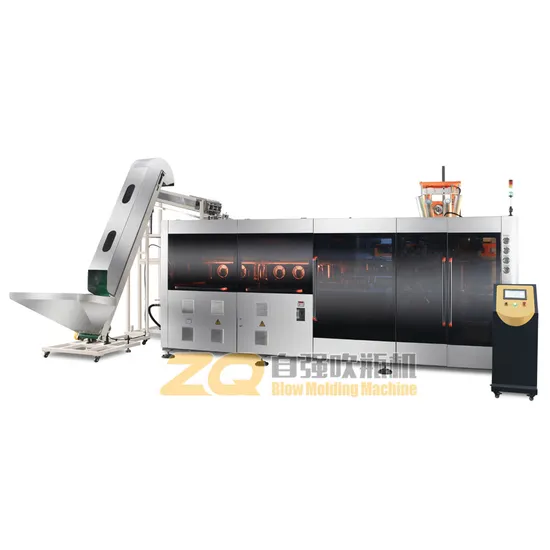

10 Cavities High Speed Plastic Pet Water Bottles Manufacturing Machine Machines

Product Description

10 Cavities High Speed Plastic PET Water Bottles Manufacturing Machine Machines
1 .The machine use continuous rotation system with multiple safety protection devices to ensure the high speed preform feeding.
2 .The preform feeding without turning device,simple structure,convenient maintance, reduce cost of spare part change.
3 .The heating pitch between the preforms is small,effectively using the heating space of the lamp tube,and improving the heating efficiency enery saving by variable pitch structure.
4 .The water runs directly through the heating channel with air cooling system to protect preform neck from deformation.
5 .Optimize oven air draft and preform surface cooling.Reversible heating box make it more easy to change lamp.
6 .Mould closing adopts CAM linkage,no chain plate pin shaft small size, long service life.
7 .The stepping servo motor ensure high-speed operation and accurate positioning.
8.Servo moto is used to drive the stretching and blowing station,equipped with high speed precision blowing valve set to achieve high production requirements.
9.Stainless steel pipe make the air blowing more clean without pollution.
10 .High pressure recycle system reduce power consumption.
11 .Multiple direction positioned for the autoloader make it more flexibly for installation.
12 .The machine is desighed to be compact in size.effectively reducing floor space.
High Speed Fully Electric Plastic PET Stretch Blowing Machine,equipment information.

	UNIT	ZQ-G600-8	ZQ-G600-10
Number of Cavities	PC	8	10
Max.Bottle Capactity	L	0.6	0.6
Max.Neck Diameter	mm	30	30
Max.Bottle Diameter	mm	70	70
Max.Bottle Height	mm	300	300
Theoretical Output	B.P.H	16000-18000	20000-22000
Spindle Chain Pitch	mm	38	38
Bottle Cavity Pitch	mm	80	80
Max.heating Power	KW	60	60
Servo Motor Power	KW	17.5	22
Other Motor Power	KW	5	5
Total Power	KW	83	87
Voltage/Frequency	V/HZ	380±10% 50HZ/220V±10% 60HZ
Operating Pressure	Bar	7	7
Low pressure Air Consumption	L/min	1000	1000
Blowing Pressure	Bar	35	35
High Pressure Air Consumption	L/min*	8000	9000
Operating Pressure	Bar	3-5	3-5
Temperature Range	ºC	10-12	10-12
Flow Rate	L/min	50	50
Cooling Capacity	HP	5	5
Operating Pressure	Bar	3-5	3-5
Temperature Range	ºC	10-15	10-15
Flow Rate	L/min	50	50
Cooling Capacity	HP	5	5
Size(L*W*H)	M	5.6*1.5*2.6	6.2*1.5*2.6
Weight	KG	6000	7000

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.

---
