| US$100,000.00 | 1 set (MOQ) |
| 01. | Screw Conveyer |
| Motor power: 1.5kw Diameter of feed pipe: 114mm Material: 304 stainless steel The parts which are contact with material are made of 304 stainless steel. | |
| 02. | Force Feeding Machine |
| Motor power: 4kw equipped with inverter Diameter of storage hopper: 950mm Height of storage: 1100mm Feeding model: corkscrew feeding The parts which are contact with material are made of 304 stainless steel. | |
| 03. | SJ 165/30 Extruder |
| Diameter of screw: 165mm Material of screw and barrel: 38CrMoAl, which is hardened by nitriding treatment. L/D: 30:1 Effective length of the screw: 4950mm Rotate speed: 80-120rpm Motor power: 185kw, equipped with inverter, the main machine that adopts frequency converter to regulate the speed. Heat power: 8kw*8 Cooling power: 0.25kw*8 Vacuum Pump Force Exhausting Power: 3kw (For good quality pellets) The screw is special for PE and the extruder has the water outlet and gas outlet holes. | |
| 04. | Die head and net change device |
| Non-stop Hydraulic Screen Changing Device Hydraulic pump power: 3kw Heat power: 8kw Diameter of filter net: 300mm Die head: Φ3.2mm×84 There is a pressure transducer to warn over pressured. The mould net change device is made of 40Cr steel and the surface is hardened. It has special moulds for PE pelletizing and purchases unstop net change device. | |
| 05. | Water-Ring Pelletizer |
| Cutting Motor: 3kw, equipped with inverter Quantity of blade: 2 PC Water Pump Power: 4kw The parts contacted the raw material are made of 304 stainless steel. | |
| 06. | Dewatering Machine |
| Motor: 7.5kw Rotating Speed: 1400rpm The parts contacted the raw material are made of 304 stainless steel. | |
| 07. | Storage Hopper |
| Blower power: 3kw Volume: 1000L The parts contacted the raw material are made of 304 stainless steel | |
| 08. | Control Panel |
| SIEMENS AC contactor RKC Intelligent Temperature Control Instrument Digital Display The working state of every part of the machinery will be show on the panel. There is emergency stop switch on the panel. | |
| 09. | FOB Shanghai Price |
| 10. | Remark |

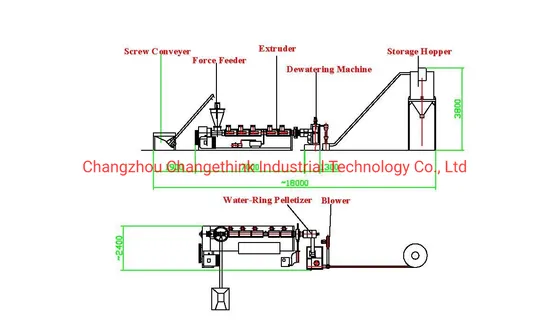

| Installed Power: 214kw Installed thermal air heater: 74kw Production Line Dimension(L*W*H): 18000*2400*3800mm This equipment is suitable for recycling PE plastic Manufacturing standards: In accordance with CE |
