Rts-400 China Professional Metal CNC Machining Center Price 5 Axis Accessories

Product Description

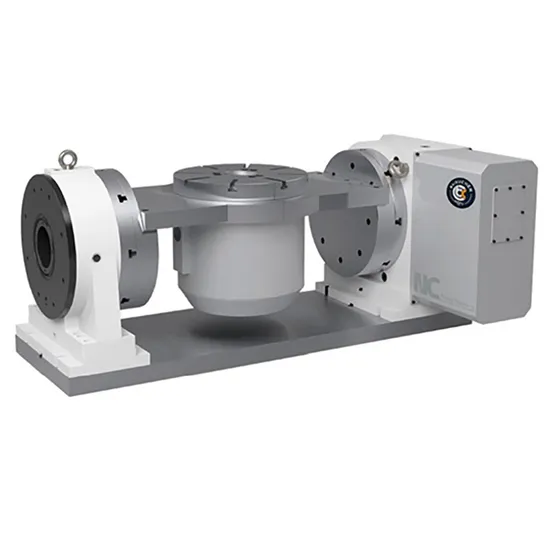

RTS-400 China Professional metal cnc machining center price 5 axis accessories
Characteristic

High precision, high performance and high efficiency
Five axis machining, modular design
Optional fixture oil circuit, optional hydraulic brake

Product Model	RTS-400	Servo motor (optional)	Rotation axisβ 22iFANUC;Tilt axisβ 22iFANUC
Panel Size	400mm	Reduction Ratio	Rotation axis1:145 ;Tilt axis1:120
Disk Aperture	50mm	Maximum Rotation Speed Of Worktable	20 r.p.m
T-groove Of Disk Surface	12H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±120°deg	Segmentation Accuracy	Rotation axis20″sec;Tilt axis20″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	Rotation axis4″sec;Tilt axis4''sec
0 ° Time Disk Height	462.5mm	Locking torque of rotating shaft	Rotation axis7840N.m;Tilt axis1800N.m
90° Time Center Height	305mm	Brake Pressure	Rotation axis pressure Motor+Machinery;Tilt axis oil pressure35Kg/cm²
Net Weight (about)	650Kg	Allowable Cutting Force	Rotation axis300Kgf-m;Tilt axis170Kgf-m
Horizontal placement	400KG	Ninety ° Time	200KG
