Gap Bed Lathe Machine /Horizontal Lathe Machine CS6250B CS6266B CS6250C CS6266C

Product Description

Product Description

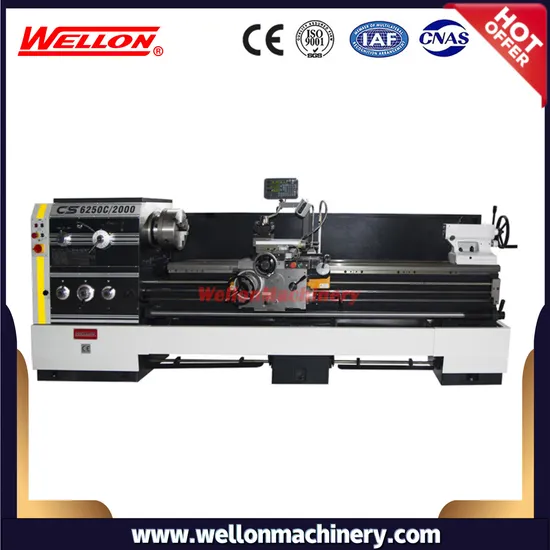

Gap Bed Lathe Machine CS6250B CS6266B CS6250C CS6266C

Detailed Photos
Product Parameters
Performence Features:
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Technical parameter:

Model			CS6250B	CS6266B	CS6250C	CS6266C
Capacity	Max. swing dia. over bed	mm	Φ500	Φ660	Φ500	Φ660
	Max. swing dia.in gap	mm	Φ710	Φ870	Φ710	Φ870
	Max. swing dia. over slides	mm	Φ300	Φ420	Φ300	Φ420
	Max. workpiece length	mm	1000/1500/2000/3000
Spindle	Spindle bore diameter	mm	Φ82		Φ105
	Type of spindle nose	no	ISO 702/II NO.8 com-lock type	ISO 702/II NO.8 com-lock type	ISO 702/II NO.8 com-lock type	ISO 702/II NO.8 com-lock type
	Spindle speed	rpm	24 steps	24 steps	24 steps	12 steps
			9-1600	8-1400	8-1400	36-1600
	Spindle motor power	KW	7.5	7.5	7.5	7.5
Tailstock	Diameter of quill	mm	Φ75	Φ90	Φ90	Φ90
	Max. travel of quill	mm	150	150	150	150
	Taper of quill (Morse)	MT	5	5	5	5
Turret	Tool O.D. size	mm	25X25	25X25	25X25	25X25
Feed	Max. X travel	mm	145	145	145	145
	Max. Z travel	mm	320	320	320	320
	X feed range	mm/r	93 kinds 0.028-6.43	93 kinds 0.028-6.43	65 kinds 0.063-2.52	65 kinds 0.063-2.52
	Z feed range	mm/r	93 kinds 0.012-2.73	93 kinds 0.012-2.73	65 kinds 0.027-1.07	65 kinds 0.027-1.07

Standard accessories:
3-jaw chuck
4-jaw chuck
Face plate
Steady rest
Follow rest
Drive plate
Dead centers
Splash guard
Oil tray
Longitudinal mechanical stop
Work lamp
Coolant system
Foot Brake
Chuck guard
Tool post guard
Some tools
Optional accessories:
Tapper turning attachment
Quick change tool post
Live center
Digital readout
Thread chasing dial
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Double Column Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
