Plastic Bottle Recycling Equipment with Wash Line

Product Description

State-of-the-Art Plastic Recycling Washing Line: Engineered by Wenzhou Wandun Machinery Co., Ltd., this PE Plastic Recycling Machine with Enhanced Washing Line is meticulously designed for unparalleled efficiency in the granulating process. Experience superior performance, reliability, and sustainability tailored to meet all your plastic recycling needs. Crafted with precision and incorporating the latest advancements in recycling technology, this equipment ensures optimal output and energy efficiency, making it the ideal choice for eco-conscious operations.
Product Description
Introducing the centerpiece of Kitech Machinery's recycling series-the Plastic Recycling Washing System. Ingeniously crafted with a modular design, this system excels in processing rigid plastics and bottles. It handles a diverse range of materials including PE, LDPE, HDPE, PC, PS, and ABS, ensuring top-tier soft recycling efficiency.
Kitech presents customizable module combinations meticulously designed to cater to your specific requirements and material conditions. Capable of handling a broad spectrum of raw materials, our production lines range from 300 to 10,000 Kg. Whether you need economy or high-level configurations, Kitech has the perfect solution to match your production needs.


Introduction:

Type	WT500	WT100	WT2000	WT3000
Capacity(kg/h)	400-500	800-1000	1600-2000	2500-300
Dimension(L*W*H)	35*10*5	50*12*6	70*12*6	120*20*6
Steam consumption(kg/h)	0-150	0-200	0-300	0-600
Chemical consumption(kg/h)	0-3	0-5	0-10	0-20
Energy consumption(kwh)	175	198	306	550
instalation power(kwh)	210	330	498	810
*** (person /shift)	3-5	3-8	3-10	3-12

Main Technical Variables:
Belt conveyor:
Heavy-duty model, enhanced with a gear motor;
Side walls engineered to prevent material spillage;
Crusher:
Precisely engineered with sharp and powerful blades;
Enclosed cutting chamber to securely contain materials;
Knives are externally adjustable for user convenience;
Shredder:
Specially designed hopper to prevent material ejection;
Unique four-way rotating knives with custom holders;
Extremely robust pedestal bearing housings;
Externally mounted bearing pedestal designs;
Screw conveyor:
Built with wear-resistant stainless steel screws;
Triple sealing with an external bearing design;

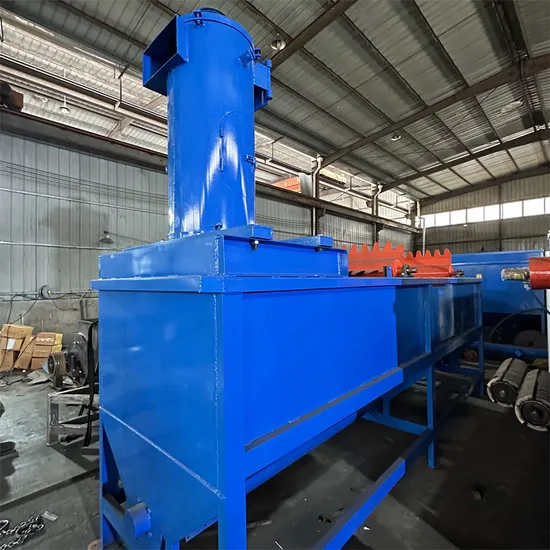

Washing tank:
Double station discharge valve located at the bottom;
Variable speed control facilitated via inverter;
Heavy-duty washing unit for separating materials of varying densities;
Friction washer:
Rotor and blades crafted from wear-resistant steel;
Rotor dynamically balanced, offering an accuracy of ±3-5g;
Active material washing to protect downstream units;
Centrifugal dryer:
Rotor dynamically balanced, ensuring an accuracy of ±3-5g;
Mild circular screen designed in a four-piece polygon configuration;
Housing built with stainless steel welded construction;
Squeezing dryer:
Heavy-duty shaft and blade;
Double hydraulic press units;
Motorized screw squeezing mechanism;
Hot air pipe dryer:
Pipeline constructed with stainless steel welding;
All material-contacting parts are stainless steel;
Hot air drying system ensuring efficient drying;
Storage buffer:
Directly connected to the pelletizing process;
Large storage capacity to ensure uninterrupted operation;
Electrical cabinet
Fitted with internationally recognized low voltage components;
Double circuit safety relay for enhanced protection;
Intelligent, modular PLC control system ensuring seamless operation.
Q1. What are your terms of packing?
A: Our standard packaging involves placing the machine on a protective pallet and securely wrapping it with plastic film, guaranteeing safe transportation.
For our valued European customers, we ensure that every wooden box used for shipment is thoroughly fumigated to guarantee safe and compliant transport. Our meticulous packing process includes the use of high-quality PE film, and we also provide bespoke packing solutions tailored to meet the unique needs of our esteemed clientele.
We are fully equipped and prepared to accommodate any special requests to meet your specific needs and preferences, ensuring your complete satisfaction.
Q2. What are your payment terms?
A: Our payment terms are straightforward and transparent: we require a 30% deposit via T/T, with the remaining 70% due before delivery. To ensure complete transparency, we provide detailed photos of the products and their packaging before the final payment is made.
Q3. What are your delivery terms?
A: We offer highly flexible delivery terms including EXW, FOB, CFR, and CIF to perfectly accommodate your logistical needs.
Q4. What is your delivery timeframe?
A: Typically, our delivery timeframe ranges between 30 to 60 days following receipt of your advance payment. The exact time may vary depending on the specific items and quantities in your order.
Our delivery times are flexible and may vary based on the specific details and specifications of your order to ensure tailored service.
Q5. Do you test all your products before delivery?
A: Absolutely, we conduct a comprehensive and rigorous 100% test on all our products to ensure they meet our stringent high-quality standards before delivery.
Q6: How do you ensure long-term and positive business relationships?
A: 1. We consistently deliver high-quality products at competitive prices, maximizing value for our customers.
2. We treat every customer with the highest level of respect, fostering genuine and lasting business relationships and friendships, regardless of their background or origin.

---
