US$5,000.00-13,000.00
|
1 Set
(MOQ)
|
Basic Info.
Application
Poultry, Fish, Pig, Cattle, Dog etc
Heating and Ventilation Equipment Type
Air Duct
Epidemic Prevention Equipment
Animal Feed Pellet Mill
Computerized
Computerized
Certification
ISO9001:2008, CE, BV
Model
Animal Feed Pellet Mill
Motor Power
30kw Animal Feed Pellet Mill
Capacity
1.5 -2 Ton/H Capacity
The Moisture of Raw Materials
Less Than 13%
Pellet Size
2.5, 3, 4, 6, 8mm
Pellet Mill Color
According to Customer′s Request
Dimension
100*43*95mm Animal Feed Pellet Mill
Raw Material Scope
Grass, Grains, Food, Straw etc
Animal Scope
Poultry, Fish, Pig, Cattle, Dog etc.
Specification
CE, ISO, SGS, BV
Production Capacity
300 Set/Month
Packaging & Delivery
Package Size
150.00cm * 110.00cm * 72.00cm
Package Gross Weight
350.000kg
Product Description

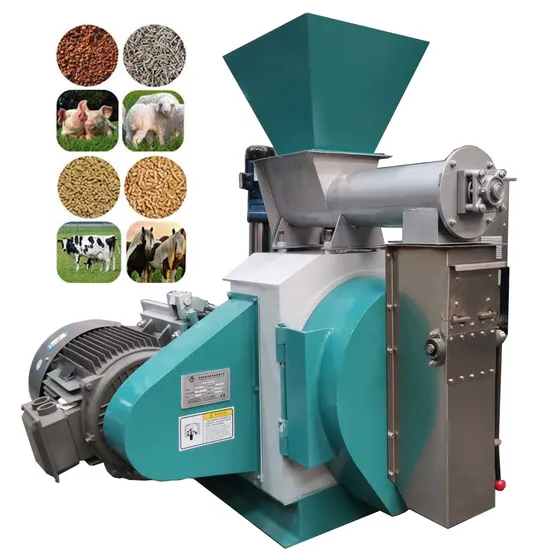

CE 2-3 ton/h Farm Poutry Animal Use Cattle Chicken Feed Pellet Machine Price for Sale
Usage of feed pellet machine:
It is used to produce pellet feed for pig, cattle, sheep, rabbit, chicken, duck, fish, etc;
To make straw granule
To make inorganic fertilizer granule
Introduction
SZLHA Series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.
Features
| Parameter/Model | SZLH-15A | SZLH-20A | SZLH-25A |
| Output(kg/h) | 100-200 | 500-700 | 1000-1200 |
| Power (kw) | 3 | 11 | 22 |
| Revolving Speed of ring die (r/min) | 420 | 306 | 306 |
| Inside diameter of ring die(mm) | 150 | 200 | 250 |
| Pellet diameter(mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 |
| Dimension(m) | 0.75*0.45*0.8 | 1.1*1.15*1.25 | 1.1*1.15.1.25 |
| Weight(kg) | 175 | 500 | 625 |
SZLH B Series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for chemical industry, fertilizer industry and sugar industry.
Specification
| Model No. | SZLH-20B | SZLH-25B | SZLH-30B |
| Output(kg/h) | 500-700 | 1000-1500 | 1500-2000 |
| Power (kw) | 11 | 22 | 30 |
| Feeding motor(kw) | 0.75 | 0.75 | 0.75 |
| Revolving Speed of ring die (r/min) | 306 | 306 | 330 |
| Inside diameter of ring die(mm) | 200 | 250 | 304 |
| Pellet diameter(mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 |
| Dimension(m) | 1.1*1.5*1.52 | 1.1*1.15*1.25 | 1.35*1.3*1.6 |
| Weight(kgs) | 580 | 710 | 960 |
Introduction
SZLH C series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.
Specification
| Parameter/Model | SZLH-20C | SZLH-25C | SZLH-30C |
| Output(kg/h) | 600-800 | 1000-2000 | 1500-2000 |
| Power (kw) | 11 | 22 | 30 |
| Feeding+Conditioner motor(kw) | 0.75+1.1 | 0.75+1.1 | 0.75+1.1 |
| Revolving Speed of ring die (r/min) | 306 | 306 | 330 |
| In-side diameter of ring die(mm) | 200 | 250 | 304 |
| Pellet diameter(mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 |
| Dimension(m) | 1.1*1.86*1.6 | 1.1*1.86*1.6 | 1.35*1.88*1.65 |
| Weight(kgs) | 720 | 900 | 1035 |
Note: Above capacity is base on producing chicken feed with the 5mm ring die, if you want to produce
different feed or different size feed pellet, please kindly inform in advance.
Crusher machine:
Mixer Machine:
Pellet machine:
Cooler machine:
Pellets packing machine:
Final feed pellets:
Production Line:
300-800kg/h small feed pellet line:
1 ton/h feed pellet line:
2 ton/h feed pellet line:
3-5 ton/h feed pellet line:
>>
