300-5000 kg per hour PET/HDPE/LDPE/PP/PE Bottles Film Woven Bag plastic bottle Flakes Scrap Crushing Washing recycling line

Product Description

Product Overview

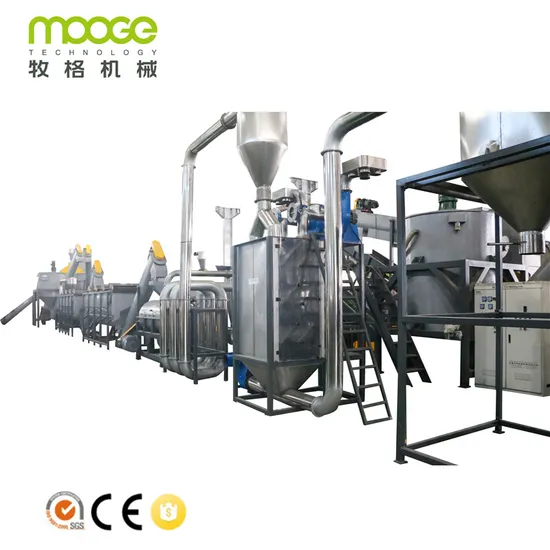

1000 kg per hour PET plastic bottle recycling washing line

This series PET plastic bottle washing line is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers.
The PET plastic bottle washing line can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.
All your requirements of the PET plastic bottle washing line will be customized.
We can manufacturing the production line according to the customer requirement and final flakes quality requirements; The production line can be placed in a straight line,also we can install the line as "U" or "L" shape.
Products Description
PET washing line type.We can design the layout according to your requirements .

Model	Capacity	Installed Power	Steam Use	Water Supply	Manpower	Area Required
MT-500	500 kg/hr	190 KW	Optional	4-5 m3/hr	4-6 Person	60*5*5 m
MT-1000	1000 kg/hr	260 KW	Optional	5-7 m3/hr	8-10 Person	80*8*5 m
MT-2000	2000 kg/hr	400 KW	Suggest Use	10-15 m3/hr	10-12 Person	80*8*5 m
MT-3000	3000 kg/hr	600 KW	80,000 Kcal	20-30 m3/hr	12-16 Person	100*8*10 m
MT-4000	4000 kg/hr	800 KW	100,000 Kcal	30-40 m3/hr	15-20 Person	135*10*10 m
MT-5000	5000 kg/hr	1000 KW	120,000 Kcal	40-50 m3/hr	15-20 Person	135*10*10 m

FEATURES AT A GLANCE
Label Remover Machine Function:remove the labels from the bottle and separate label out from bottles Blade made by alloyed steel for long time use Blade is fixed by screw on the rotor easy to adjustable and changeable The barrel designed with doors opening on it very easy to opening and maintenance The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use
Crusher Machine
Function: crushing the bottles to PET flakes,with water inlet do wet crushing Chamber opened by screw motor Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the blades use life, reduce the dust generation. Bearing house is outside of the crusher chamber so no dirty goes inside for longer use.
Hot Washing Tank
Function: with hot water washing to remove oil/glue and other dirty from the flakes The tank made with insulation layer to save energy.Feeding caustic soda/detergent to washing Its better Heating by steam, can buy a steam boiler to produce the steam, the boiler can heating up by gas/diesel/petrol/LPG
Final "Zig-zag" label separator
The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content. Blower with air flow adjustable,With valve to control the air flux of blower. Zig zag main chamber one set made by stainless steel,Chamber with plexiglass window to open and check inside


Customer Onsite
MT-500 PET bottle recycling washing machine in Qatar
MT-500 PET bottle recycling washing machine in Myanmar
MT-3000 PET bottle recycling washing machine in Algeria
Product packaging
1- For the loose cargo we will packing by Wooden box 2- For the Full container loading we are packing the machine by film and some on pallet accordingly 3- We can shipping the goods by air or by sea 4- We will send pictures of cargo loading to our client to check and keep recording 5- we can send cargo to client's warehouse to loading
After Sales Service
Service before sale 1, 24 hours online .Your inquiry will be quick reply by email . Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager ) 2,Professionally and patiently introduction,details pictures and working video to show machine Service on sale : 1,Test every machine and inspect the machine seriously . 2,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok . 3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free. If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery. Service after sale 1, Free insurance for goods 2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
FAQ
Q: How long is the warranty time of the machine? A: One year for free
Q: What material is the machine made of?
A: Stainless steel and carbon steel.
Q: Are you manufacturer or trading company?
A: We are a professional plastic machinery manufacturer company located in ZHANGJIAGANG City, Jiangsu Province of China.
In order to have a better understanding of your needs,we need you to provide below information about your product:
1. Which kind of material you are going to process?
2. What is your required production capacity?
3. Do you have any other recycling machines?

---
