Used Coil Electric Decoiler Machine

Product Description

Used coil electric decoiler machine
Used coil electric decoiler machine features:
1. Types available: electric decoiler,mandrel decoiler
2. Adopts hydraulic expand/loosen and hydraulic driving system
3. Easy to operate
4. Suitable for pre-painted coil,cold rolled coil, and galvanized coil
Used coil electric decoiler machine system
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Technical parameters of Used coil electric decoiler machine
1. Main frame : 160mm Channel Steel to weld
2. Dia of shaft : 95mm
3. Power of motor : 3kw
5. Chain : 31.75mm
6. Bearing : 6312
7. Appearance size : (Length)1840mmX(Width)1000mmX(Height)1200mm
8. To support and uncoil the steel coil
9. Tenses the coil by Electric power, it is convenient for the workers to operate
10. The inner coil diameter : φ450-550mm
11. Max outer coil diameter : φ1000mm
12. The max capacity : 7T

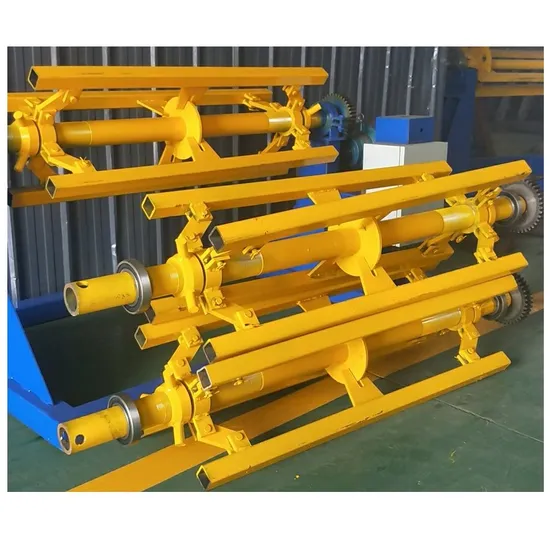

Used coil electric decoiler machine reference picture:
Other machines:

1	Different types roof profile drawing forming machine
2	Curve roof roll forming machine
3	Ridge cap roll forming machine
4	Floor deck roll forming machine
5	Rain gutter roll forming machine
6	Down pipe roll forming machine
7	Highway guardrail roll forming machine
8	Roller shutter door forming machine
9	Door frame roll forming machine
10	CZU purlin roll forming machine
11	Light keel roll forming machine
12	Slitting machine (lines)
13	Shearing/bending machine
14	Decoiler(Hydraulic decoiler ,electric decoiler and manual decoils)

---
