Basic Info.
Pipe Material
Carbon Steel
Customized
Non-Customized
Name
Electric Pipe Threading Machine
Threading Capacity
2", 4", 6"
Surface Treatment
Galvanized
Transport Package
Wooden Cases
Specification
ISO9001, CE
Production Capacity
200PCS
Product Description

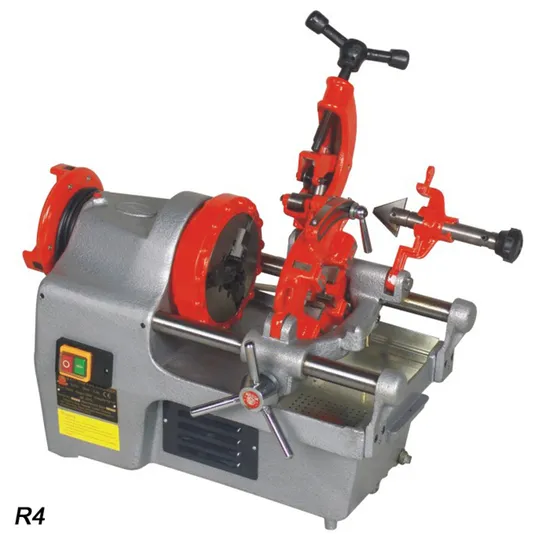

Rigid Die Head Electric pipe threading Machine R2, R4, R6
FEATURE
Dia head: automatic type
chuck: hammer-type with replaceable, rocker-action jaw inserts
rear centering device : cam action
oiling system: through the head, with an internal oil reseroir , self-priming, constant-flow pump
SPECIFICATION
| Name | Electric Pipe Threaders |
| Model | R6 | R2 | R4 |
| Processing Range | 2 1/2"-6" | 1/2"-2" | 1/2"--4" |
| Die Specifications | 2 1/2"-4",5"-6" | 1/2"-3/4",1"-2" | 1/2"-3/4",1"-2",2 1/2"-4" |
| Voltage(V) | 220(1PH) | 380 (3ph) | 220V/380V | 220V/380V |
| Power(W) | 1100 | 750 | 750 |
| Speed(RPM) | 5 | 17.5 | | 19/27 |
| GW/NW(Kg) | 230/190 | 75/60 KGS | 150/135 |
| Package Size(mm) | 1100×770×690 | 720×490×560 | 1000×650×640 |
Detailed Photos
>>
