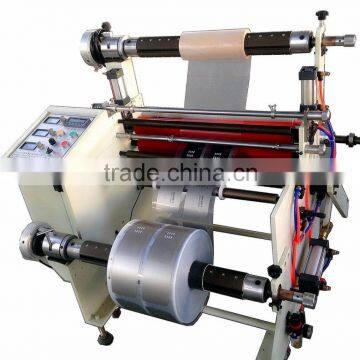

automatic roll laminating machine
automatic roll laminating machine Features:
1. Max feeding width: 420mm/650mm
2. Speed: 60m/min
3. Material thickness: 0.05-3mm
4. Tolerence: +/-0.2mm
5. Precision: 0.3mm
6. Under CE and ISO
7. OEM or ODM can be customized
8. Manufacturing experience: 30 years
9. Export experience: 20 years
precision roll to roll hot foil laminator Functions:
1. This machine is applicable to stick the narrow scope paper
2. It automatically count meter, set length, stop and alarm, unwind
3. Tension is controlled by magnetic clutch,
4. High precision, high speed, easy to operate
Application: Laminating and sticking for materials with base glue and other materials.
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
Model
| automatic roll laminating machine DP-650TH Main Technical Parameter
|
Max Web Width
| 650mm
|
Max.Feeding Diameter
| 500mm
|
Sticking Speed
| 60m/minute
|
Sticking Precision
| 0.1mm
|
Main Motor Power
| 0.75KW
|
Detailed Images
Packing & Delivery
Certifications
The laminating machine advantage
A.automatic roll laminating machine Summarize
automatic roll laminating machine is used for materials laminating, it can automatically count , setting length, stop, the whole machine frequency stepless speed regulation, magnetic particle clutch, Brake constant torque tension control, Traction, Rewinding pneumatic locking, Rapid loading and unloading etc. High precision, easy operation, it is Electronic insulation manufacturing plant supporting one of the necessary equipment.
B. automatic roll laminating machine Main data and technical specifications
2.1 Max feeding roll length : 420MM/650MM
2.2 Max rewinding / winding diameter 450MM
2.3 Laminating speed 80M/Min
2.4 Laminating precise ±0.2MM
2.5 Main Motor 0.75KW
C. Operation board explanation
1. Power：plugging in the outlet , Start the power
2. Stop：used for machine stop working mode.
3. Speed governing: control the motor speed, knob to the right rotation, the motor speed will be higher.
4. Start: used for machine start working.
5. crawl：For machine start feeding material, feeding stop when hand off.
6. meter-counting: the controller adopted Perimeter calculation method to calculate the length, the hall switch producing each pulse signal, the controller add one step value . The step value is different as the machine installation different, to increase the precise, require the step value the shorter the better, as shown in note 3, the four sensor points installed on the roller end, So that the drum circumference equal portions to shorten the stop length .
>>
