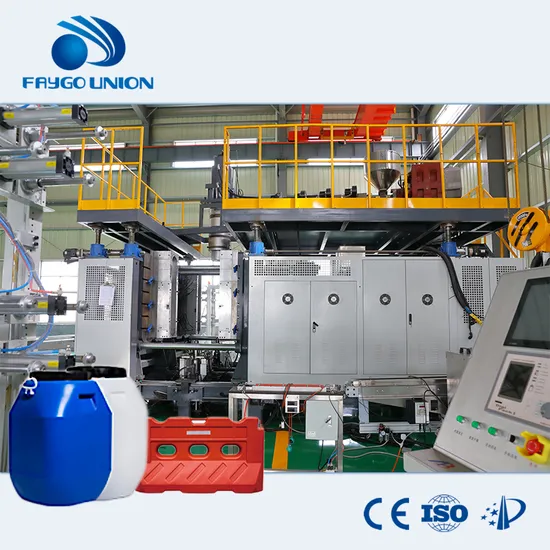

Chinese Hot Sale 3 5 Gallon PC Barrel Blowing Moulding Machine with Servo Motor

Product Description

Product Introduction
Chinese Hot Sale 3 5 Gallon PC barrel Blowing moulding Machine with Servo Motor
It is suitable for producing plastic PE, HDPE, PP, PVC containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar,drum ,Tool kit , plastic model etc.
What We Can Blow
In reality, we can produce many different shapes and sizes of bottles, depending on its design and configuration. For example, oil cans, toys, toolboxes, trays, buckets, medical beds, bus seats, car air ducts, etc.
If you have any questions, please contact us.
Product Parameters
Detail specification Extrusion Blow Molding Machine

Name	Units	ABLB65II	ABLB75	ABLB75II	ABLB90	ABLB90II	ABLB100II
Max. Product volume	L	3.5	8	8	16	16	30
Dry cycle	PC/H	800*2	800	750*2	700	700*2	400*2
Screw diameter	MM	65	75	75	90	90	100
Screw L/D ratio	L/D	24	24	24	24	24	25
Screw drive powe	KW	18.5	22	22	45	45	55
Screw heating capacity	KW	5-6	8-10	8-10	12-14	12-14	15-17
No.of heating zone	ZONE	3	4	4	4	4	4
Output of HDPE	KG/H	75	100	100	150	150	200
Servo Oil pump drive power	KW	7.5	15	15	18.5	18.5	22
Clamping force	KN	65	78	78	160	160	230
Blowing pressure	MPA	0.6	0.6	0.6	0.6	0.6	0.8
Air Volume	M3/MIN	0.6	0.8	0.8	0.7	0.9	1.5
Cooling water pressure	MPA	0.3	0.3	0.3	0.3	0.3	0.3
Water consumption	L/MIN	50	80	80	70	90	150

Product Details

Detailed Photos
Our Service
1> The machine will be tested and checked at our workshop before delivery.
2>After one year, we will supply accessories are provided only one the cost price.
3> Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part.
4>Free production technology and process configuration.
5> We can help you to design the product line, workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $100/day during the engineer's journey.
7>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first
Company Profile

Jaingsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Welcome to visit our company, and make win-win cooperation in the future.
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.

---
