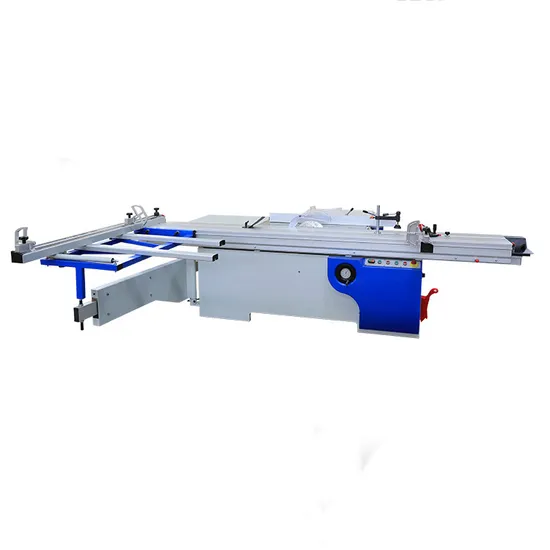

Wood Cutting Machine 3200mm 45 Degrees Precision Panel Saw

Product Description

wood cutting machine 3200mm 45 Degrees precision panel saw
Technical Specification:

Model	MJ6132TY
Dimension of sliding table	3200*375mm
Gross cut capacity	3200mm
Width of cut between saw blade and rip fence	1250mm
Tilting saw group	0-45°
Diameter of main saw blade	300mm
Max. cutting height (90°)	80mm
Speed of main saw spindle	4000/6000r.p.m
Main saw motor power	5.5kw
Main spindle diameter	30mm
Diameter of scoring saw blade	120mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1kw
Scoring saw spindle diameter	20mm
Weight	750kg
Overall dimension	3250*3150*900mm

Components:
roller guide -- Euro-Seating (at your option)

Dust hood with high arresting efficiency, remove dust and protect the environment. Optional.

Buttons -- controlling the whole machine

Main table--made of cast iron, firm, abrasion proof and uneasy deformation

Auxiliary table --made of cast iron

Sliding table-made of high-strength extruded aluminum alloy , light and uneasy distortion. Double layer sliding table.
Main saw--made of duralumin



Main ruler--made of aluminum,ensure the cutting precision, strength saving
Indepent electric box:



Packaging:
About our company

For more details, pls feel free to contact us.

---
