Automatic Fast Speed Paper Tray/Dish Plate Making Forming Machine Ml660y

Product Description

ML660Y Fast Speed Paper Plate Machine

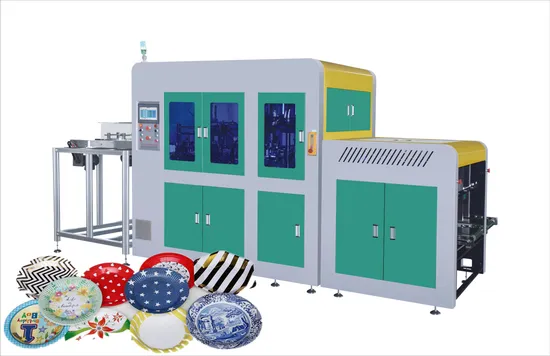

Machine Picture:
Product Description ML660Y Intelligent Hydraulic paper plate machine (energy-saving version) is a new type of machine developed by us in October 2022 to produce paper plates. The mold is formed using hydraulic forming principle,and after forming,the tray is ejected using a motor function,making the product discharge more stable. Upgrade and improve on the original 600 machine, Energy saving of 4 KWH per hour. It also adds an automatic paper feeding function to reduce manual labor.
Product Parameters

Main Technical Parameters
Paper Plate Size	4-13 inches
Paper Grams	150-800 g / m 2
Paper Materials	Raw paper, white board paper, white card paper, aluminum foil or others
Capacity	Double Stations 60-140 pcs / min
Power Requirement	380V 50HZ
Total Power	Rated power 8KW, Actual Power 5KW
Weight	2630kg
Specifications	4250X1300X2000mm (including length of paper holder)
Air Supply Requirement	0.6 Mpa, 0.1 cube / min
Other Notes	Customize
Oil Cylinder	80x150x6T
Cylinder Stroke	150mm

Samples:
Our Advantages 1 . The machine uses efficient and energy saving hydraulic system, compared with the 600 machine, more stable, more efficient, more energy saving. Air cooling upper row, optimize the heat dissipation function and wind direction, convenient docking of the exhaust pipe, so that the hot air exhaust to the outdoor.
2 . Two stations working separately, one machine can produce different sizes and shapes plates at one time.
3 . Forming in a straight line, Add an outomatic paper feeding function ,.Using motor transmission, to solve the problem of chuck.. After forming,the tray is ejected using a motor function,making the product discharge more stable, saving labor and cost. Conveyor belt extension, paper plate can stay on, to solve the problem of assembly line.
4 . Machine adopts photoelectric tracking, automatic counting and collecting, machine will alarm and automatic stop in case of emergency, achieve safe and intelligent production.
5 . Use the iron frame, more secure.
6 . 10-inch display screen, more clearly operation.
7 . Machine main body and the collector part can be separated, it is easy to place and save space.
8 . The slide structure is made of aluminum profile, easy to replace the mold after adjusting the size, simple and easy to operate. The mold is made of carbon steel material, which is not easy to deform, and the mold surface prevents rust treatment.
9 . Machine panel, the shell color can be customized according to the guest requirements.
Remarks: 1). Price Term: FOB NINGBO2). Payment: T/T (30% for deposit, 70% before delivery by T/T)3). Load time: 30 working days at sight the deposit. 4). Packaging: Wooden packing applies to export5). After sale service: 1. Spare parts guarantee for one year in machine arrival. 2. Send the technician for installation & training. Buyer bears the cost (round tickets, accommodation, And allowance of 100USD per day).

---
