Aluminium Window Door Drilling Machine with Six Heads/Aluminum Profile Holes Drilling Machine/ Aluminium Doors and Windows Manufacturing Machines

Product Description

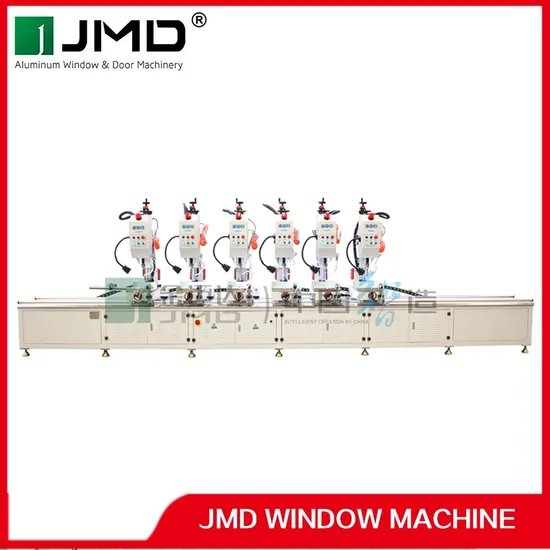

Six Heads Drilling Machine for Aluminum Window & Door
(LMZZ6A-13)
Features

1. Mainly used for drilling aluminum doors and Windows, curtain wall profiles, especially suitable for long material and mass production.
2. suitable for profiles with sections no more than 250*250mm, and the maximum processing length reaches 6000mm
3. Multi-head drilling machine can be installed to process multiple groups of holes at the same time
4.The feed system adopts gas-liquid damping cylinder, and the feed is stable.

Technical Parameter

Power supply	380V/50Hz	Max processed size of profile	250*250mm
Input power	1.1kW*6	Overall dimension	6300*1000*1900mm
Air pressure	0.5~0.8Mpa	Weight	1500Kg
maximum drilling diameter	Ф13mm	feed stroke of drill bit	125mm

Detailed Photos
Associated Aluminum Machinery
Our Factory
Shandong JMD Machinery Co., Ltd is a leading manufacturer specializing in design and manufacturing of aluminum and wood window & door machines in China.Established in 1999, JMD started the business of supplying machining parts for window machine manufacturers.
Few years later, we built our own R & D team and started to produce the complete aluminum window & door equipment such as double mitre saw, corner crimping machine, copy router, end milling machine, corner connector cutting machine and aluminum punching machine, etc. In 2012, JMD became one of the top-10 suppliers of aluminum window & door machines in China.
In 2013, JMD designed the first generation of aluminum profile automatic cutting machine. Now, the 3rd generation, model LJGS-CNC-500x6000 is one of the most successful aluminum profile cutting machine in China.
In 2014, JMD launched the first wooden window production line in China. From then on, Chinese window plants started to make first-class Aluminum-clad wood windows and doors with machines of Chinese brand.
Today, JMD has 230 employees and over 130sets of sophisticated processing equipment( including CNC processing center, milling machine, grinding machine, planners, lathe machine, wire cutting machine, welding machine and bending machine, etc. Our well-trained after-sales team and large parts warehouse support us to provide the best service in shortest time.
We'll always combine a love for machines with creativity, an understanding of windows & doors, and a passion for discovering better ways to do everyday tasks. Look forward to working with you soon!
