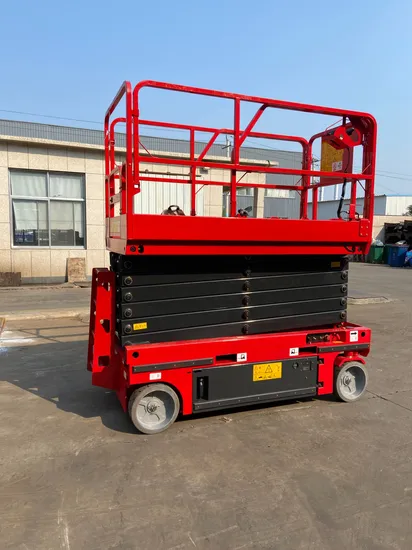

230kg-450kg Self Propelled Scissor Lift Foldable Electric Scaffolding Lift Platform

Product Description

230Kg-450kg self propelled scissor lift foldable electric scaffolding lift platform
Product Description

It is widely used for the equipment installations and maintenance at the following places
like construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.
Introduction
1. Hydraulic System
All machine functions are performed by the hydraulic system. The whole hydraulic system is divided in two parts: one part is used for driving and steering function, the other part is used for platform lifting function.
All the functions are driven by a hydraulic pump, the rate of flow is 16L/min. When the pump is activated, it supplies hydraulic fluid under pressure to the function manifold, where the direction valves and control valves are located. To protect from over pressurization of the hydraulic system, the pump is provided with a pressure relief valve.
2. Electrical System
In this system, Use four six-volt batteries to drive the hydraulic pump and lift function controls. Batteries are charged by external power source.
3. Machine Controls
The machine is equipped with operational controls, which is located in the ground controls box. The controls transfer data through a high-speed data bus. Product Parameters

Model	Table Size (m)	Loading Capacity (kg)	Lifting Platform height (M)	Overall Dimensions (m)	Table Extended	Weight (kg)
CFPT0608	2.27*1.12	450	6	2.48*0.81*2.21	0.9m	2100
CFPT0810	2.27*1.12	450	8	2.48*1.15*2.34	0.9m	2250
CFPT1012	2.27*1.12	320	10	2.48*1.15*2.47	0.9m	2510
CFPT1214	2.27*1.12	320	12	2.48*1.15*2.6	0.9m	2883

Detailed Photos

Packaging & Shipping

Company Profile

Warranty details A.Warranty: 12 months warranty apart from man-made faults from receiving the platform lift
B. The main parts can be provided for free during the warranty.
C. During the warranty, if the equipment was broken due to the quality itself, we can do the free maintenance and provide the needed spare parts until it can work for normal use. If it is man-made faults, you need pay the material cost.
D. Tires, electric parts do not belong to the scope of warranty
E. We provide all-life long technical support, online and telephone service. Our Advantages

---
