Automatic Pet Handled Bottle Manufacturing Machine

Product Description

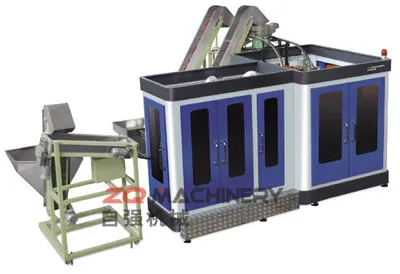

Fully Automatic PET handled bottle manufacturing machine
ZQ-B2500-2 is our newly designed full automatic blow molding machine for handled bottle production, this model boasts with full automation, high intelligence, stable fuctioning, simple composition, high efficiency, low cost, no contamination in production, up to National Hygienic Standard, widely applied in food, beverage, cosmetics and pharmaceutical field, etc, especially find great applications in edible oil production industry.
In ZQ-B2500-2 blow molding machine operating, after preform being loaded and positioned, with the help of sevo motor positioning device, handles can be accuratedly positoned in mold, and realizes full automatic production for handle bottles.
Handled bottle blow molding machine substantially increase production output without more labor cost, bringing great significance to PET edible oil bottle blow molding machine industry, a good option for mediumlarge manufacturers for handled bottle with high output demands, however, for those with small output requirements, ZQ semi-automtic blow molding machine (ZQ22-III, ZQ22-IV) would be a good choice!
PET handled bottle, Max. Volume: 5 Liter. Automatic PET handled bottle manufacturing machine
Fully Automatic PET handled bottle manufacturing machine,equipment information.

TYPE	ITEM	ZQ-B2500-2
CONTAINER	Number of cavity	2cavities
	Output	900-1200 pcs/hr
	Max.container volume	2.5L
	Max.neck diameter	12-38mm
	Max.container diameter	125mm
	Max.container height	<350mm
ELECTRICAL SYSTEM	Number of lamp	40pcs
	Max.heating power	60kw
	Installation power	65kw
	Actual power consumption	32-38.4kw
AIR SYSTEM	Operatating pressure	8-10kg/cm²
	Low pressure consuming	2000-3000Ltr/min
	Blowing pressure	26-35kg/cm²
	High pressure consuming	3600-4200 Ltr/min
CHILLER WATER	Operating pressure	3-4 kg/cm²
	Temperatuer	18ºC
	Consuming	16000kcal/hr
	Flow rater	135Ltr/min
MACHINE	Machine dimension	4.05x2.80x2.50(m)
	Machine weight	4.0ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.

---
