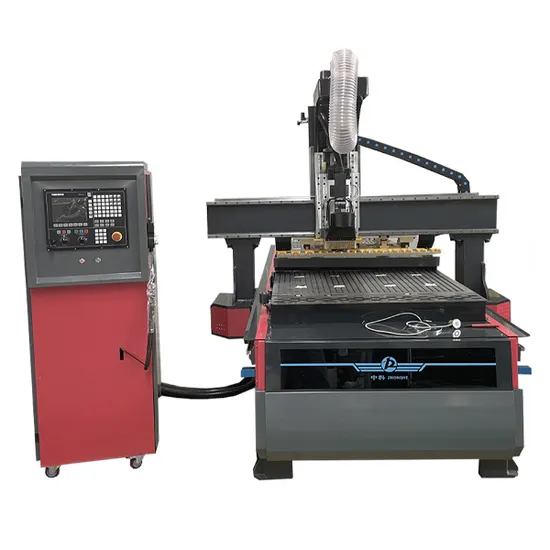

3D Wood Carving Cutting Machine Woodworking Machinery

Product Description

Machine feature:
1.when delivery we will provide the videos for training.
2. More steady and strong equipped bed structure with T-shape thick steel
3. Equipped with 6/9kw air cooling spindle can move 0-180 degree, it can engrave the bending material by moving spindle.
4. The auto oiling system, just pushing the handle then can realize the whole machine oiling, very convenient.
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6. Taiwan SYNTEC control system with industrial control panel.
7. Taiwan HIWIN square guide rail with 30mm diameter, high precision and long life time, rack and pinion transmission, high speed.
8. Vacuum adsorption table with 7.5KW vacuum pump, it can adsorb the materials on the table, more stable when engraving wood doors.
9. Japanese YASKAWA servo motor and drivers.
10. Function of re-carving after break point and power off, reducing the materials wasting.
11. Good software compatibility, all kinds of CAD/CAM, such as Typ3, ArtCam, Castmate, UcanCam, Artcut engraving software, Coredraw, etc.
Main Configuration:
1) Working area: 1300mm*2500mm*300mm
2) Vacuum adsorption table with 7.5KW vacuum pump
3) Cast steel structure thicken to 8mm
4) SYNTEC controller system
5) YASKAWA Servo motors and drivers
6) 6 or 9 kw HQD spindle can move 0-180 degree
7)Automatic oiling system
8) Taiwan HIWIN square guide rail with 30mm diameter
Application:
1. Mould: Wood, wax, wood, gypsum, foams, wax. 2. Furniture: Wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows. 3. The wood products: Voice box, game cabinets, computer tables, sewing machines table, instruments. 4. Plate processing: Insulation part, plastic chemical components, PCB, inner body of car, bowling
Tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds. 5. Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such
As copper, aluminum plate engraving and milling process.
Specification

Description	Parameters
X, Y, Z Working Area	1300X2500X400mm*180degree
X, Y, Z Traveling Positioning Accuracy	0.03/300mm
X, Y, Z Repositioning Accuracy	0.03mm
Table Surface	Vacuum and T-slot Combined (Option: T-slot table)
Frame	Welded structure
X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure	Hiwin Rail Linear Bearings and Ball Screw
Max. Power Consumption (Without Spindle)	5.5kw
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Spindle Power	9.0KW
Spindle Speed	0-24000RPM
Drive Motors	Yaskawa servo
Working Voltage	AC 380V/50/60Hz, 3pH
Command Language	G Code
Operating System	Syntec Control System
Computer Interface	Enthernet, CF Card
Flash Memory	512M
Collet	ER32
X, Y Resolution	<0.03mm
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
G. W.	2000KG

Sample pictures
Packaging & Shipping
1. Machine and accessories are first covered by plastic sheet, water-proof and dampproof.
2. All the things are packed by plywood case used for export.
3. CNC machine Can be delivered by sea, by train, or by plane according to your designated.
Technical Support:
Guarantee: 1.5 years warranty for the whole machine. Within 18 months under normal use and maintenance, if
Something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get
Spare parts at cost price. You will also get technical support and service all the lifetime. Technical support: 1. Technical support by phone, email or WhatsApp/Skype around the clock2. Friendly English version manual and operation video CD disk3. Engineer available to service machinery overseasAfter sales services: Normal machine is properly adjusted before dispatch. You will be able to use the machine
Immediately after received machine. Besides, you will be able to get free training advice towards our machine in our factory. You will
Also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.
Factory photo:
If you have special requirements, of course, we can customize the machine according to
your requirements to suit your needs.

---
