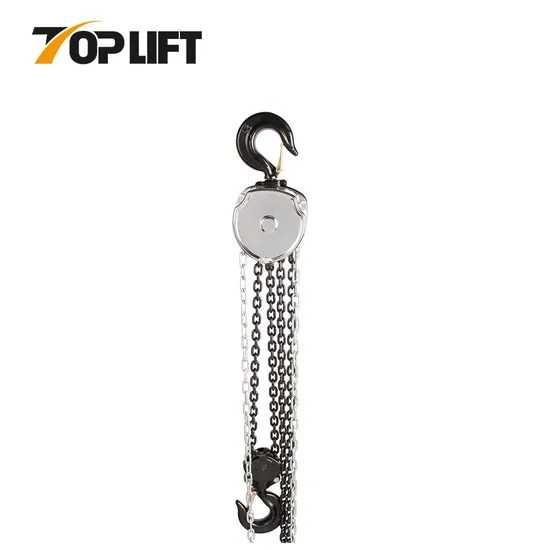

Premium Manual Chain Hoist for Heavy Lifting Tasks

Product Description

High Quality Hand Pulling Manual Chain Block, Manual Chain Hoist * Capacity from 0.5T to 30T.
* gear assembly to be efficient for operation.
* Drop forged hooks and hook holders to ensure superior quality and safety.
* light-weight steel body with durable powder coat.
* Asbests-free brake discs.
* Bearing mechanism to increase mechanical efficiency.
* G-80 load chain for sprocket made of alloy steel with precision machining has been got well heat-treatment.
* More thickness of sheet cover,gear cover and side plates for good quality.
* The static test is 4times of capacity, and running test is 1.5times of capacity one by one.
* CE AND GS CERTIFIED.
* One year guarantee.
TECHNICAL PARAMETERS

Model	Rated Load (Ton)	Standard Lift (m)	Test Load (Ton)	Efforts Required at Capacity (N)	Diameter of Load Chain (mm)	No. of Load Chains	Major Dimensions(approx) (mm)				Net Weight (kg)	Extra Weight Per Meter of extra Lift (kg)
							A	B	C	D
HSZ-0.5J	0.5	2.5	0.75	262	5	1	125	111	260	28	8	1.5
HSZ-1J	1	2.5	1.5	314	6	1	147	126	275	32	11	1.7
HSZ-1.5J	1.5	2.5	2.25	343	8	1	183	141	345	38	16	2.4
HSZ-2J	2	2.5	3	318	6	2	147	126	396	40	16	2.5
HSZ-3J	3	3	4.5	347	8	2	183	141	486	44	25	3.7
HSZ-5J	5	3	7.5	382	10	2	215	163	616	50	35	5.3
HSZ-10J	10	3	12.5	390	10	4	365	163	700	64	69	9.7
HSZ-20J	20	3	25	390	10	8	595	191	1000	82	155	19.4
HSZ-30J	30	3	37.5	394	10	10	700	394	1050	82	233	23.9

Other Products
FAQ
1.How about after sales service?
We supply free spare parts to replace your hoists. Besides, we can send your the video to guide your engineers.
2.How to ensure the quality?
Before packing hoist, our workers will send hoists to inspection center well checked.And we take detailed pictures for each hoist before packing.You can offer our serial No.And then know the detailed products.
3.If it is spare parts?
We are manufacturing 60% spare parts in our factory to control high quality, and the other 40% spare parts supplier are from our long term supplier.Before stocking in warehouse, we have strict inspection for each parts.
4.If it is warranty?
We can provide 1 years warranty for electric parts, 2 years for mechanical parts.

---
