China Weaving Machinery Manufacturer Supply High Speed Heavy Weight Water Jet Loom

Product Description

Product Description
FW407 series was designed, based on the FW851 Series water jet loom, which optimizes the main component and frame structure improving the beating-up, let-off mechanism and take-up mechanism, installing the assistant device on let-off mechanism, all of this ensure the running stability and reduces the vibration and noise, increases efficiency, and enlarges the weaving range.

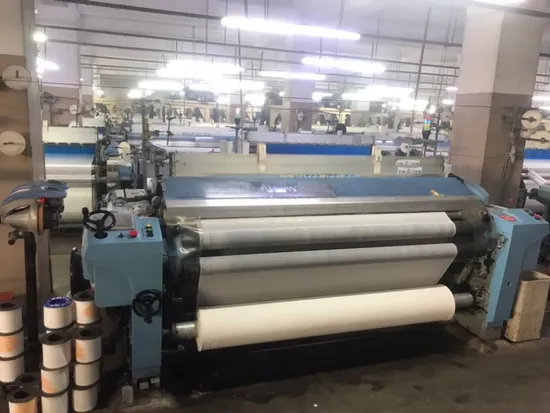

Detailed Photos
Product Parameters

Type		FW407	FW508
Reed Space(CM)		135,150,170,190,210,230,260,280,300,320,340,350,360
Useful reed space(CM)		Norminal R/S minus 2cm to 50cm
Frame		Box frame type Driving section is in oil bath
Driving	Brake	Direct stop mechanism by an electromagnetic brake
	Controller	Push and touch button(Arrange,stop,forward,brake,reverse)
	Motor	Rush start motor
	Motor power	1.5kw,1.8kw,2.2kw,2.7kw,3.2kw,3.7kw,4.5kw,5.4kw
Beating		Crank beating
Let off	system	Automatic mechanical and continuous let-off;Or electronic let-off,One or vertical two roll
	warp beam	Φ800mm flange,Φ178mm barrel
Take up	system	Mechanical or electronic continuous take-up
	Pick density	Normal:5-60picks/cm;Special:4-100picks/cm
	Cloth wind-up diameter	Φ420mm,Φ520mm,Φ600mm
Shedding	Plain shedding	crank shedding(heald frame 2 to 8);1/1 fabric
	Cam shedding	Cam shedding(heald frame 2 to 14);Plain,twill,satin babric
	Dobby shedding	Positive/negative(heald frame 16 max.);Electronic and mechanical reading system;Plain,twill,sation or complex design
	Jaquard	1408,2688,5120 lifting hooks;electronic jacquard device
Weft insertion	Measuring and storage	300#RDP type mechanical measuring turbo blower(single nozzle)Or electronic weft feeder(1-6nozzles)
	Pump	M,L,H type, Single or Double
	Plunger	Ceramic plunger;Φ32/Φ17,Φ32/Φ18,Φ32/Φ20,Φ36/Φ22,Φ36/Φ24,Φ36/Φ26,Φ39/Φ26,Φ39/Φ28,Φ39/Φ30,Φ50/Φ35
	Nozzle needle	ST20/10;ST30/10;ST45/20,SD75/40
	Weft filling	1/2/3/4/6 nozzle
	Filling feeder	Electronic,optical,and self-control
Selvage/Leno system		Twisting by star,planetary gears
Electrical part	Madeinchina/import	Main control board,AC contactor,transformer,NC interface,Selvagebrake system,Waste yarn brake system,overheating and overload protection
	Electronic meter	count and display,rotational speed,total yield,team yield,total efficiency,team efficiency,cloth length auto control,stopping analysis and display

Packaging & Shipping
Company Profile
QINGDAO FANHUA INDUSTRY CO, LTD has progressively become the world's leading manufacturer of textile weaving technologies, providing professional weaving looms-water jet loom, air jet loom,velvet looms, etc.
We serve the global market with exceptional machinery for high speed water jet looms, high speed air jet looms, velvet looms, etc. Products are mainly sold to India, Pakistan, Vietnam, Indonesia, Turkey, Uzbekistan, Brazil, and other countries. There are sales and after-sales service centers in India and Indonesia.
We have professional engineers, production team and after-sales service, and constantly update and upgrade our looms to create our own unique technical features.
FAQ
1. Are you a manufacturer:
We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
2. How about the quality?
We have our team of engineers who constantly update and upgrade the machines, professional assembly line work and strict quality test system can ensure your high quality requirement.
3. Do you attend the exhibition every year?
Yes, we attend the India, Indonesia, Pakistan, shanghai china, Uzbekistan, Turkey etc. textile exhibition every year. 4. Do you have an office in a foreign market? Yes, we have an office in Suzhou, China; in India, in Indonesia, welcome to visit us.
5. What is the delivery time?
We can deliver the looms within one month of 300 sets.

---
