Single Drum Removable 5ton Electric Winch

Product Description

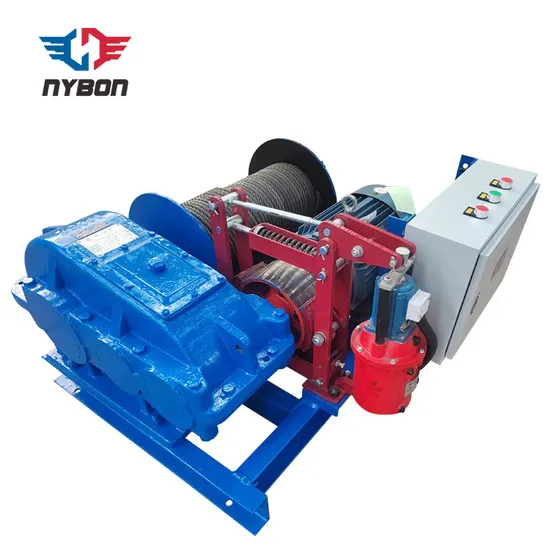

Single drum removable 5ton electric winch with rope guider

This series electric winch is is made up of motor, brake, drum, wire rope, electrical appliance, base ect ; Electric winch is mainly used for Vertical lifting, Horizontal pulling, Mooring, Anchoring, slipway, mine,Hydro power station,etc.It is suitable for various bridges, ports, docks, ships and other projects and large-scale plant and equipment installation projects.
Our Advantage:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. When you have only ideas, you can develop a complete set of system products for your reference and choice.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.
5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.
Product Details
Main Technical Parameter
JK Type Electric WinchLoad Capacity:0.5-60t Wire Rope Capacity:20-500m
Working Speed:20-35m/min(Single Speed and Daul Speed)
Power supply:220v-690V,50Hz/60Hz,3Phase

JK Electric winch
Basic Parameters	Rated Load	Rope Speed	Capacity of Rope	Rope Diameter	Motor Power	Dimension	Total Weight
Model	KN	m/min	m	mm	KW	mm	kg
JK0.5	5	22	190	7.7	3	620×701×417	200
JK1	10	22	100	9.3	4	620×701×417	300
JK1.6	16	24	150	12.5	5.5	945×996×570	500
JK2	20	24	150	13	7.5	945×996×570	550
JK3.2	32	25	290	15.5	15	1325×1335×840	1011
JK3.2B	32	30	250	15.5	22	1900×1738×985	1500
JK5	50	30	300	21.5	30	1900×1620×985	2050
JK5B	50	25	210	21.5	22	2250×2500×1300	2264
JK8	80	25	160	26	45	1533×1985×1045	3000
JK10	100	30	300	30	55	2250×2500×1300	5100
We can design and manufacture all kinds of non-standard product according to your requirement

JM Type Electric Winch
Load Capacity:0.5-200t Wire Rope Capacity:20-3600m
Working Speed:5-20m/min(Single Speed and Daul Speed)
Power supply:220v-690V,50Hz/60Hz,3Phase

JM Electric winch
Basic Parameters	Rated Load	Average Speed of Rope	Capacity of Rope	Rope Diameter	Motor Power	Overall Dimension	Total Weight
Model	KN	m/min	m	mm	KW	mm	kg
JM1	10	15	100	9.3	3	620×701×417	270
JM1.6	16	16	150	12.5	5.5	945×996×570	500
JM2	20	16	150	13	7.5	945×996×570	550
JM3.2	32	9.5	150	15.5	7.5	1430×1160×910	1100
JM3.2B	32	12	195	15.5	7.5	1082×1014×610	536
JM5	50	10	270	21.5	11	1235×1230×805	1560
JM5B	50	9.5	200	21.5	11	1620×1260×945	1800
JM5C	50	9.5	350	21.5	11	1235×1230×805	1800
JM5D	50	15	350	21.5	15	1235×1230×805	1850
JM5E	50	20	350	21.5	22	1235×1230×805	2000
JM20	200	10	600	43	45	3950*2560*1950	9900
JM25	250	9	700	48	55	4350*2800*2030	13500
JM32	320	9	700	56	75	4500*2850*2100	14800
JM50	500	9	800	65	90	4930*3050*2250	19500
JM65	650	10.5	3600	64	160	5900*4680*3200	46000
We can design and manufacture all kinds of non-standard product according to your requirement

Application
Machining Equipment
Certifications
Company Profile
Successful Project
Packaging & Shipping
We can customize according to customer requirement.
1. Which driven method do you require?
2. What is your application?
3. What capacity winch you need?
4. How long wire rope need?
5. Do you have speed requirement?

---
