Warehouse Loading and Unloading Crane

Product Description

100kg Lifting device for Reel material
Technical documents

The following technical lifting device descriptions for the roll film handling as your inquired:
1,Technical Parameters of lifting device for reel handling.
1.1,The specification of jib arm with column.
1.2 The column material is customized by carbon steel, and the surface paint color is blue, Height about 6000mm;
1.3 Jib arm length 3000mm, Max. capacity 150kg;
1.4 Chemical screws are installed on the ground; the buyer must ensure that the thickness of the foundation is not less than 200mm and the strength is above C20;
1.5 Effective installation height more than 6000 mm;
Request installation floor: Ground floor;
Reference Drawing of jib column with column;
1.6 Rotation angle 240 degrees, with stopper;
2,The specification of Chained Intelligent lifting equipment.
Model No.: BMS0.25-01M
> Applications (Major Application and scope)
Automobile industry( Including engines, gearboxes, new energy battery assembly. etc.) Energy industry Machinery manufacturing and processing Precise assembly Handling work with high repeatability Parts assembly Warehouse loading and unloading Product sub-packaging Product Advantages: 1. The chain serve as the lifting medium of the chained intelligent lifting equipment, Which outperforms the wire rope in terms of wear resistance, maintenance and service life, The chain is driven by the chain wheel inside the equipment, so the lifting stroke of the equipment will not be limited. 2. The equipment features easy operation, high precision, intelligence, controllable speed, etc, providing it with the ability to maximize production efficiency and minimize occupational risks to operators. 3.Manual control through a separate handle, flexible and safe operation. 3,Electrical Coregripper for reel lifting device-Customized by Corporation.

Max. load 120kg.
Power input: 380V, 50HZ, 3PHASE

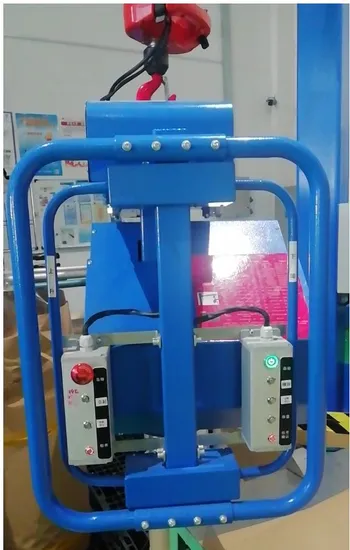

4,Operating procedures Name: Corgripper for reel- Expansion by electrical Frame material carbon steel;Max. load 120kg. Lifting height 3000mm, Minimum height 150mm. - The handling product is non-woven fabrics , - Dimension: ID:76mm/152mm
OD: 1000mm-1200mm
Max. weight 100kg
4.4 Operating procedures:
Crafting process: The central axis of the expansion sleeve is vertically turned by 90° to make the expansion sleeve turn and horizontally penetrate into the paper tube core of the reel. The expansion sleeve is electrically tightened. The sleeve shaft is perpendicular to the reel, and then the roll film is moved to the pallet for stacking; then the electric expansion sleeve is released, and the operation is repeated.
5,Operation control instructions
5.1 Location: Move the track to control the coregripper to move the expansion sleeve to the top of the reel and insert it into the inner core hole;
5.2 Gripping coil: Press the "Tighten" button to control, the clamp will start to tighten automatically, and it can be lifted and transported.
5.3 Reel rotate: Press the "L&R Rotate" button to control, the electric rotating mechanism moves to make the reel 90 degrees along the rotating shaft .
5.4 Moving reel: The moving track controls the spreader to move to the unwinding position;
5.5 Reel release: Press the release button with both hands to release the reel material, and control the lift button to separate the expansion sleeve from the roll film.
