Kraft Paper Honeycomb Cardboard Laminating Machine

Product Description

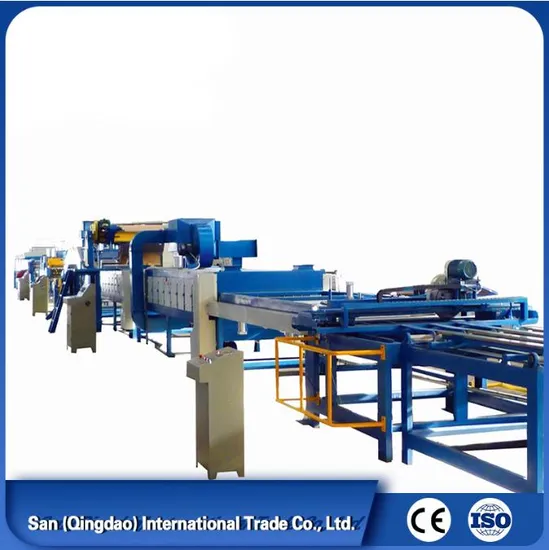

Honeycomb paper panel lamination is our self-developed latest honeycomb paper panel making machine.the line is high-automatic,less labored,high efficient and least waste.It's processed from ready honeycomb paper core to the finished honeycomb paper panel.It's producing honeycomb panels continuously for the whole process.
The basic material is corrugated paper,kraft paper or tea-color paper and the glue is white latex,starch glue,etc

Technical specification:
Model	SAN-FBJD-1300
Max.panel width	1300mm
Min.panel width	500mm
Panel thickness	6-80mm
Production speed	0-20m/min
Heating type	Electrical heater,hot air circulation
Power supply	60kw,380v,50hz
Tatal length	35m
Air supply	≥0.5m³,air pressure≥8kg/cm2
Applicable paper	100-400gsm corrugated medium or kraft paper

Product display
Production Process
Certifications
Exhibition
Our Services √ One year guarantee for whole machine, all life follow-up service.
√ 24 hours technical support by email.
√ Technicians oversea set-up and workers training.
√ Use- friendly English for operation system.
Company information
Packing & Delivery
FAQ: 1) Which machine suitable for me? How can I chose?
All our machine is customized for a big factory or a small business.
1. To figure out the product you will pack
2. The dimension of the product or the dimension of the packing bag
Length, width and height? Weight per bag?
3. Bag type
If you are not sure, we can help you to fine a perfet bags and provide you a project for you to choose.
2) It's the machine durable or ensure long-time use?
1. We have spare part production department most of our spare part is producing by our factory and our engineers master every part will good to the running of the machine.
2. Well maintain is not to be ignored
3) How long the delivery date?
The small machine is 15-20days and the large machine will be 20-45 days.
4) How about the After-sale service?
We have professional after-sale technical team, we can make you a video to show you how to fix and installation.

---
