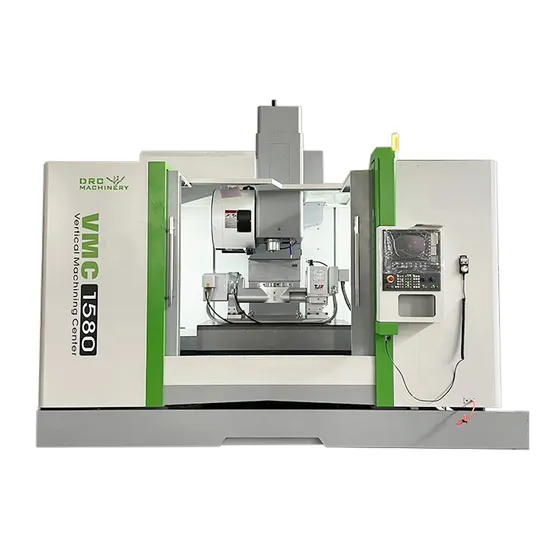

Large bed 4 axis cnc milling machine high precision VMC1580 5 axis large cnc machine center price
VMC1580 machine tool inherits the advantages of strong rigidity, symmetrical structure, and strong stability of the traditional vertical CNC milling machine, and introduces international advanced dynamic rigid design concepts to optimize the design of moving parts. The machine tool has large torque and good quick response characteristics, which is suitable for the needs of various machining fields such as automobiles, molds, aerospace, military, and hardware.
Model
| VMC 1580 (GSK25i system)
|
Travel parameters of 3 axis
|
|
X /Y/Zaxis travel
| 1500/800/700mm
|
Spindle face to table distance
| 130-860mm
|
Distance between spindle center and column guide surface
| 810mm
|
Worktable parameters
|
|
Worktable size
| 1700×800mm
|
Maximum load bearing of worktable
| 1800kg
|
T Shot
| 5×22×135mm
|
Feeding parameters
|
|
X/Y/Z axis rapid movement rate
| 20/20/15m/min
|
Feed moving velocity X, Y, Z
| 1-6m/min
|
Spindle parameters
|
|
Main shaft connection
| Belt
|
Spindle taper
| BT50-155
|
Range of spindle speed
| 8000rpm
|
Spindle motor power
| (Alternating current servo)15kW
|
ATC paremeters
|
|
ATC capacity
| 24qty
|
Maximum tool size
| Φ200mm(tool from a distance)
|
Maximum tool weight
| 18kg
|
Precision
|
|
PositionaI accuracy(JIS standard)
| ±0.005/300
|
Repeated positioning accuracy(JIS standard)
| ±0.005
|
Shape and weight
|
|
Machine size
| 3100x4300x3200mm
|
Weight
| 13000Kg
|
