Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Weight Level
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Max. Working Height
26.38 M
Max. Platform Height
24.38 M
Max. Load Capacity
230 Kg
Transport Package
Container
Specification
11280*2490*3000 mm
Production Capacity
300 Units/Month

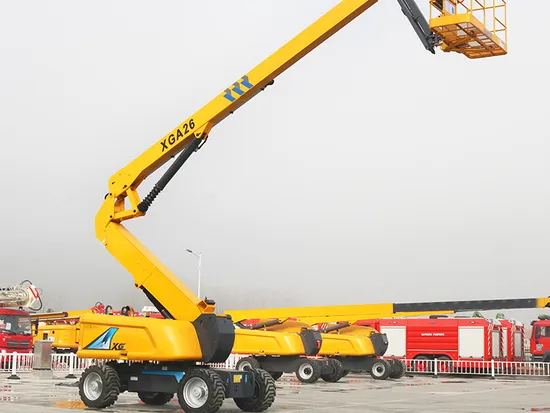

Product Description
Company
Product Description
* The single-cylinder drives the boom and the column to synchronously luff and lift, increase the operating speed, quickly approach the construction area, and improve the construction efficiency. It is suitable for construction areas with relatively low height and relatively narrow space.* The use of lubrication-free bushings and sliders reduces the friction between the joint hinge points and the sliders between the booms, and better adapts to welding and dust construction environments, while greatly reducing the failure rate and improving the service life of the entire vehicle.* The power system adopts an electronic control engine. The sensors of oil pressure, water temperature and speed are integrated with the engine and controlled by ECU, which is safe and reliable. At the same time, it comes with a fault diagnosis interface to facilitate fault diagnosis and maintenance.
Product Parameters
Item | Unit | Parameter |
Max. Working Height | m | 26.38 |
Max. Platform Height | m | 24.38 |
Max. Working Range | m | 18.9 |
Max. Load Capacity | kg | 230 |
1st Boom luffing Range | ° | -1~+70 |
2nd Boom luffing Range | ° | -35~+68 |
Fly Jib Luffing Range | ° | -60~+70 |
Rotation Angle of Turntable | ° | 360°(Continuous) |
Rotation Angle of Platform | ° | 160 |
Max. Tail Wagging | mm | 1330(Boom lifted) |
Max. Travel Speed | km/h | 5 |
Min. Turning Radius | m | 4.2m(Four turn)/ 6.7m(Two turn) |
Min. Ground Clearance | mm | 260 |
Max. Grade Ability | % | 45 |
Tire Specification | - | 18/625 |
Engine Model | - | QSF2.8t3TC71 |
Rated Power of Engine | kW/(r/min) | 53/(2200) |
Total Weight | kg | 17800 |
Platform Size | mm | 2400×900 |
Overal Dimensions | mm | 11280*2490*3000 |
Wheel Base | mm | 3000 |
Detailed Photos
