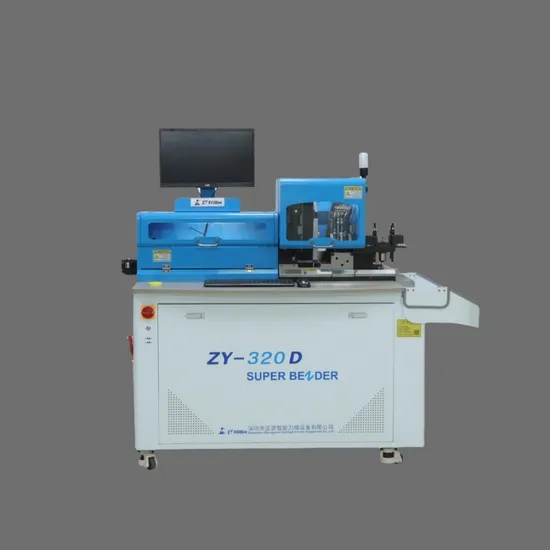

Die Cutting Steel Rule Auto Bender/Bending Machine for Carton Die Board

Product Description

Product Description
♦Auto Multi Broach, Multi Nick, Bending, Lipping, Auto Lift Bridging, Flat Cutting, No-slot joint can do in one machine automatically
♦Auto Bridging Width: 5~15mm, Height: 5~22mm
♦Double clamps system guarantee continuous and stable feeding.
♦Material Specification: Height: 7~32mm, Thickness: 0.45~1.07mm
♦Applications: High-end printing dies, blister packing dies, sticker dies, screen protector dies, cigarette packing dies, etc.
♦Auto steel rule holder is optional for bender, the holder can take 5 different type of steel rule.
Detailed Photos

Technical Parameters
Max bending angle		95°
Min arc radius of 180°		R3.5
Min arc radius of 90°		R1.0
Min cutting size		1.0mm
Min bending size		1.5mm
Power		2.65KW
Setting of bridge		Height can be adjusted by software within 15-18mm Width can be adjusted by software within 5-15mm Being able to customization of circular hole Bridge
Overall dimensions(L*W*H)		3.2m*1.1m*1.7m
Weight		600kg
Motor type		Panasonic/Fuji Servo Motor
Power supply		220V, 50/60Hz
Air compressor		6-8kg/cm²
Operation system		Windows 10
Support language		Chinese, English
Support file format		DXF, AI, DWG, CDR etc.
Computer		P4 Computer Mainframes 19 inches LCD

Our Advantages 1. We have more than 15 years experience and technology.
2. We have different models almost cover all sizes of steel rules.
3. Our ball screws are C3 level from Taiwan, which is the highest standard using in the auto bending machines. The ball screw and guide rails forming the triangle, which is the most stable structure, ensure the stable and precise feeding length.
4. With special materials and many different technological processes, we are producing the most durable tools, usually it can reach to 300,000 times, while tools from some other companies only can use for about 100,000 times.
5. There are few after sales problems with using the branded spare parts. With professional and complete production managing system before sending, the machines are working very well after arriving at customers' factory. Without after sales problem which will cause machine stop working, you will earn a lot more money and save time.
Packaging & Shipping

FAQ
1. Are you a factory or trading company? We are a factory with our own hardware and software engineer since 2008, with 15 years researching and experience. One of the earliest auto bending machine manufacturers from China.
2. How long is the warranty of your machine? We offer 1 year warranty from the date of shipment of the machines.
3. Can we change to our local language? So far we have simplified Chinese, English and German. Other languages can be customized if needed.
4. How can you guarantee quality? We have complete procedures of order preview, purchasing, mold management, assembling, internal quality audit, rejected spare parts control etc.
5. Can you send the service engineer to our company ? Yes, we can offer 3 days free training. And customers need to bear all costs during the training.
6. How long is the production time of your machines?
For the standard configuration, the production time is usually about 15 working days. For customized tools, it needs to be discussed.
7. How can I operate your machine? Is it hard to learn?
It is easy to learn, we have complete videos and manual to teach you to operate the machines. If necessary, we can also send engineer to your factory, and customer need to bear all costs.

---
