Mobile Self Propelled Scissor Lift Hydraulic Scissor Lift Platform Electric Model for Sale

Product Description

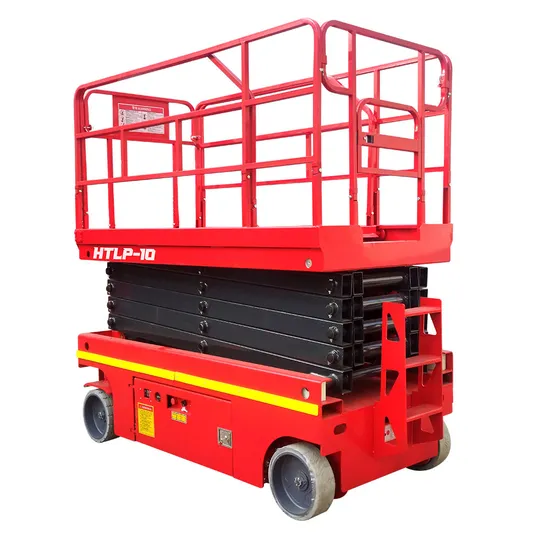

Hydraulic Control Scissor Lift
Product introduction: The fully automatic self-propelled lifting platform is a self-propelled aerial work platform. It has the function of automatic walking. It can walk at a slow speed under different working conditions. , steering, etc. Main features: The user can control the mechanical lifting and walking without going down the lifting platform, and can control the equipment to drive to other working places on the platform. The equipment itself has the functions of walking and steering, without manual traction or external power supply. It is flexible and convenient to move, making aerial work convenient and fast, and it is an ideal aerial work equipment for modern enterprise production. Use place: suitable for a wide range of operations such as airport terminals, stations, wharfs, shopping malls, stadiums, residential properties, factories and mines.

Model	HTLP0.3-4	HTLP0.3-6	HTLP0.3-8	HTLP0.3-10	HTLP0.3-12	HTLP0.3-14
Safe working load	320kg	320kg	320kg	320kg	320kg	320kg
Safe working load of extension	113kg	113kg	113kg	113kg	113kg	113kg
Max number of worker	6m	8m	10m	12m	14m	16m
Max platform height	4m	6m	8m	10m	12m	14m
Overall length	2600mm	2600mm	2600mm	2600mm	2600mm	3200mm
Overall width	1170mm	1170mm	1170mm	1170mm	1170mm	1500mm
Overall height	2160mm	2280mm	2400mm	2520mm	2640mm	2210mm
Working platform size	2400* 1170mm	2400* 1170mm	2400* 1170mm	2400* 1170mm	2400* 1170mm	2800* 1400mm
Platform extension size	0.7m	0.7m	0.7m	0.7m	0.7m	0.7m
Min ground clearance	0.1m	0.1m	0.1m	0.1m	0.1m	0.1m
Wheelbase	1.89m	1.89m	1.89m	1.89m	1.89m
Min turning radius	2.20m	2.20m	2.20m	2.20m	2.20m	2.20m
Lifting motor/driving motor	24V/4.0KW	24V/4.0KW	24V/4.0KW	24V/4.0KW	24V/4.0KW	24V/4.0KW
Machine travel speed	0.8KM/H	0.8KM/H	0.8KM/H	0.8KM/H	0.8KM/H	0.8KM/H
Battery	6V/230AH	6V/230AH	6V/230AH	6V/230AH	6V/230AH	6V/230AH
Machine weight	2000kg	2200kg	2400kg	2600kg	2800kg	3500kg

---
