Corrosion-Resistant Wear-Resistant Ceramic Liner Double Sigma Mixer (Al2O3)

Product Description

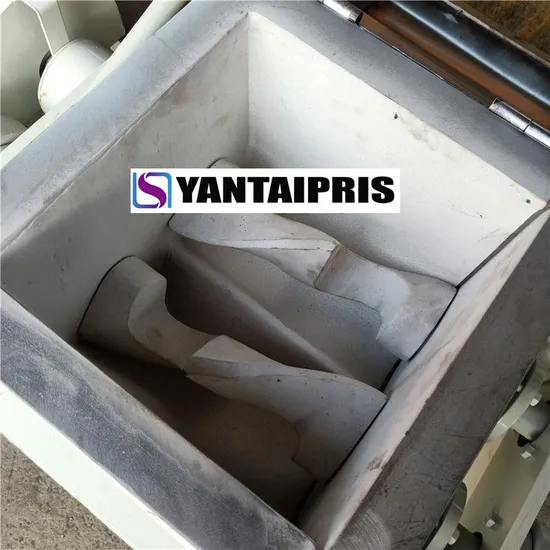

10L Customized special ceramic liner (Al2O3) double sigma mixer with good wear-resistance and corrosion-resistance performance!!!
Notes:Contacting parts adopt special ceramic liner,including the two sigma blades!
Notes:with electricity heating system.
Q1:Why do you need a double sigma mixer?
Usually speaking,we mostly use the followed types of mixers: V type mixer,ribbon mixer, coulter mixer, paddle mixer, double screw mixer, double sigma kneader, planetary mixer, etc. But only kneader and planetary mixer are suitable for high-viscosity materials mixing. Compared with planetary mixer,the kneader has a wider range of application to the viscosity of the material, but the material remaining and cleaning may not be as thorough as the planetary mixer. When customers have more colors or varieties,he should try to choose planetary mixers.
Q2:double sigma mixer applications:
It is widely used in high viscosity sealant, silicone rubber, neutral acid glass glue, chewing gum, bubble gum, pulp, cellulose, and also used in batteries, inks, pigments, dyes, medicines, resins, plastics, carbon, electrode pastes , Electrodes, rubber, cosmetics and other industries.
Q3:Technical Data:

Model	Volume		Drive(KW)	Discharging	Heating
	Full(L)	Effective(L)
DSM-2	2	1.2	1.1	Manual tilting	Steam	Electric
DSM-5	5	3	1.5-2.2	Manual tilting	Steam	Electric
DSM-10	10	6.5	2.2-3	Manual tilting	Steam	Electric
DSM-50	50	33	5.5-7.5	Tilting,Screw extruder	Steam	Electric
DSM-150	150	100	7.5-11	Tilting,Screw extruder	Steam	Electric
DSM-200	200	130	11-18.5	Tilting,Screw extruder	Steam	Electric
DSM-300	300	180	18.5-22	Tilting,Screw extruder	Steam	Electric
DSM-500	500	330	22-30	Tilting,Screw extruder	Steam	Electric
DSM-1000	1000	650	37-110	Tilting,Screw extruder	Steam	Electric
DSM-1500	1500	920	37-110	Tilting,Screw extruder	Steam	Electric
DSM-2000	2000	1250	55-160	Tilting,Screw extruder	Steam	Electric
DSM-3000	3000	1950	75-220	Screw extruder	Steam	Electric
DSM-4000	4000	2500	90-	Screw extruder	Steam	Electric
DSM-5000	5000	3300	110-	Screw extruder	Steam	Electric

---
