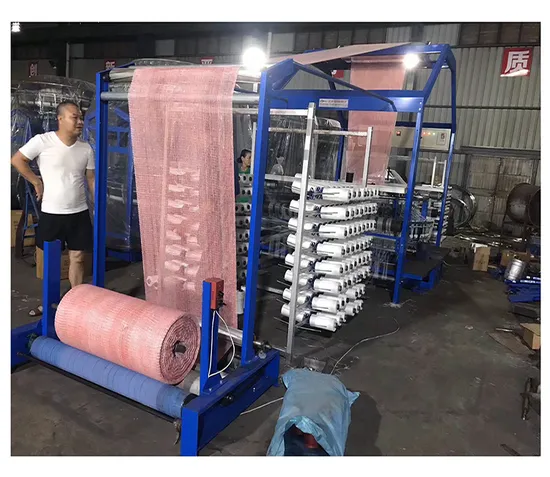

High Speed 6-Shuttle Textile Weaving Circular Plastic Knitting Loom Machine

Product Description

Product Description
Performance and Characteristic: Wenzhou zhuding machine co ltd making Small cam and connecting rod rolling wheel transmission, which is the most advancedtechnology are adopted, making it easy and stable to run.
- Rolling transmission is adopted in entire structrue instead of slide block and slide rod, which does not need lubricant and
decreases the wearing part.
- It's an environmental product whose noise is not more than 82dB(A).
- Low strength plastic yarn which is made from 100% regenerated plastic can be adopted to weave.
- It is high-efficient and energy economical. The highest rotation speed of the main motor can reach 180r/min and the power is1.5/2.2kw, which can save 10 thousand degree of electricity one year.
- It is the latest type circular loom
- As required, electronic intelligent fabric-lifting unit can be configured as well, which is featured the compensation setting tothe warp/weft density casually.

Type	S-YZJ-750/6S	ZD-PC-4/750	ZD-WYJ-4/750	70-YZJ-8/2100G	ZD-YZJ1-4/1200B	ZD-YZJ2-4/1500B	ZD-YZJ3-4/1700B
Number of shuttle	6	4	4	8	4	4	4
Folding width of weaving(mm)	300-750	350-750	300-750	1400-2100	700-1200	1000-1500	1200-1700
Max. number of warp	720	768	512	2016	960	1160	1360
Rotational speed of main motor (r/min)	120-180	140-180	40-60	40-70	100-150	120-130	120-130
Production(m/min)	1.8-2.7	1.4-1.8	0.8-1.8	1-1.5	1-1.6	1-1.6	0.75-1
Power of main motor(kw)	2.2/3	1.5/2.2	2.7	10	2.2	3	3
Weight(kg)	3000	1900	2900	5500	2500	2800	3000
L*W*H(m)	9.1*2.41*3.1	8.3*2.2*2.73	7.5*2.4*2.73	17*3.5*4	8.5*2.2*2.7	8.5*2.2*2.7	2.5*2.9*2.96

Main Products

Company Information
Shipping & Packaging
FAQ
1. How long will your engineer reach our factory?
Within one week after everything ready (machine arrival your factory, non woven material, power source, air compressor
etc.Prepared)
2. How many days will you finish installing ?
We will finish installation and training within 15 days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's air tickets, hotel, food, and also their salary 80USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee for electricity parts and two years guarantee for mechanism, starting from finished installation.
5. How could you do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
6. How could you do after one year warranty period?
We also can do service for you, but you need pay salary for our technicians 80USD/day for each person.
7. Does your engineer understand English?
Our engineers understand a little English. All our engineers have more than five years machine installation experience.
8. Can you help us find any engineer in our location?
Of course, we will check and inform you as soon as possible.
9. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finishing installation. In case you have any problem, you can contact our sales at any time. Our engineers will take a solution video according your description.
