EPE Foamed Insulation Pipe Making Machine for Solar and Air Conditioner

Product Description

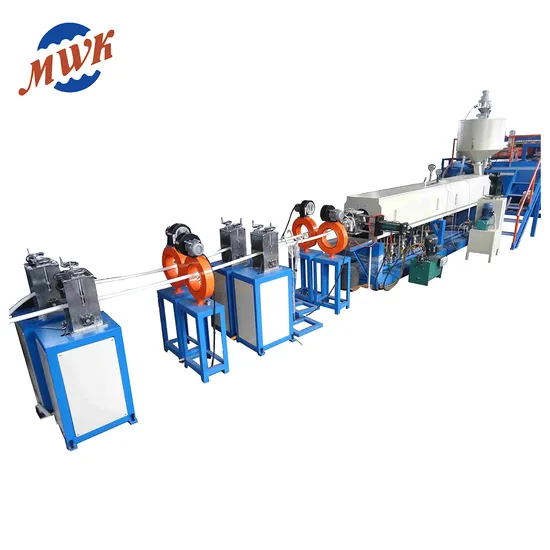

EPE Foam Trinity Pipe/Tube Making Machine for Solar and Air Conditioner

item		epe foam tube extrusion line					epe foam rod extrusion line
type		EPE70	EPE75	EPE90	EPE105	EPE120	EPE70	EPE75	EPE90	EPE105	EPE120
extruder		70/50	75/50	90/50	105/50	120/50	70/50	75/50	90/50	105/50	120/50
screw speed	r/min	5-55	5-50	5-45	5-40	5-30	5-55	5-50	5-45	5-40	5-30
foaming rate		20-40	20-40	20-40	20-40	20-40	20-40	20-40	20-40	20-40	20-40
spec.of product	mm	Φ10-50	Φ10-60	Φ20-80	Φ20-100	Φ20-120	Φ6-30	Φ6-38	Φ6-50	Φ10-80	Φ10-100
colling method		cooled by water and air
installed capacity	kw	60	65	90	105	120	60	65	90	100	120
dimension	m	15*1.3*1.7	16*1.3*1.7	18*1.6*1.7	20*1.8*1.8	22*1.8*1.8	20*1.8*1.8	20*1.8*1.8	20*1.8*1.8	20*1.8*1.8	20*1.8*1.8
total weight9about)	t	6	7	8	9	10	6	7	8	9	10

Product Application:
EPE foam pipe is a kind of new-type foam material and it is widely used in the jacket of air conditioner, pipeline, heat insulation, toy guardrail, recreation place etc. Due to its high foam ration, good elasticity and heat preservation. As a kind of new type foam filling and ornament material. EPE foam rod is widely used in spring mattress, soft stem and edge, automobile seat, sofa backrest and top-grade clothing. It is also widely used in the filling of contracting joint in building due to its good rebound elasticity.
Main Features:
1.Extruder: high output, low melting temperature,according to the different material, to replace extruder.
2.Screw: specially design for PE pipe, to ensure high efficiency, high yield.
3. Reducer: high speed, low noise, hard tooth-surface.
4. Die head: low melting temperature design; special mould design to reduce changing time of the mould.
5. Cooling system: stainless steel sink,high power pump, head and high efficiency cooling.
6. If changing auxiliary engine,it can produce rods and pipes.

air condition pipe samples:

01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.

---
