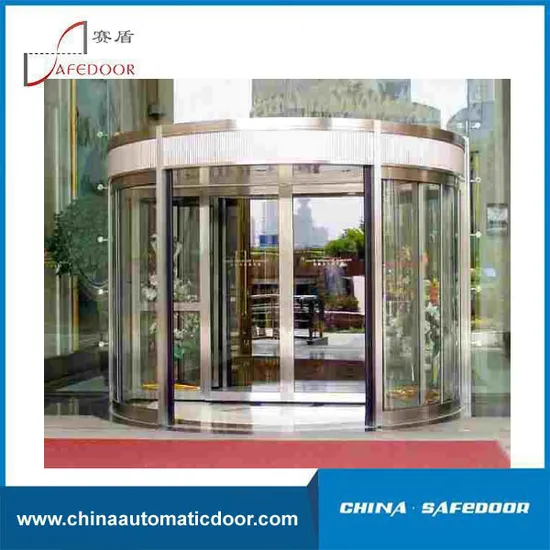

Automatic Revolving Door, with Dorma Sliding Door Wing, Aluminum Frame Stainless Steel Cladding

Product Description

Automatic revolving door, 2-wing, 1082. W2
It is durable, stylish, and user-friendly. It is easy for you to install and debug it. The safety factor of this model is very high on account of emergent stop function, anti-bump sensor, anti-nip sensor strip and so on.
Structure- Outer wall load bearing
Increase the stress surface to strengthen the stability of the door.
Emergency stop
Guarantee the pedestrian safety by emergency stop button when on emergency
Disabled function
Decrease the door rotation speed, to serve the elder, children and disabled people
LED display function
The screen display the operation status of the door, and it can output the error code to track and eliminate the malfunction
Battery backup
Support the rotation to keep operating during power stop
Procedure selector
6 position selector, convenient for user to choose different operation status
Procedure 1: Lock door
The door move into stop position, activate mechanical lock
Procedure 2: Stop at entrance opening - Start
The door will stop at the entrance opening position. When the radar activates and starts the door, the door begin to rotate one cycle (If pedestrians keep arriving, the door keeps rotating. This procedure suit for good environment, equal temperature both sides)
Procedure 3: Stop at entrance closing position - Start
The door will stop at the entrance closing position. When the radar activates and starts the door, the door begin to rotate one cycle (If pedestrians keep arriving, the door keeps rotating. This procedure suit for bad environment, different temperature both sides)
Procedure 4: Slow speed- Fast Speed
The door rotates at low speed at 0.5-2.5 cycles/minute if no people pass. When radar detects pedestrian, the door will rotates at fast speed.
Procedure 5: Manual reverse
In this position, the radar and infrared sensor signals are prohibited, and the door stops rotating. When pressing the RESET button, the door reverse rotating at low speed, and the door can be pushed by hand, which is suitable for cleaning and maintenance. Also, if accident happens, people or objects nipped can be released by this function.
Procedure 6: Manual forwarding
In this position, the radar and infrared sensor signals are prohibited, and the door stops rotating. When pressing the RESET button, the door rotate forward at low speed, and the door can be pushed by hand, which is suitable for cleaning and maintenance.

Inner Diameter (mm)	Outer Diameter (mm)	Passage Height (mm)	Canopy Height (mm)	Total Height (mm)	Entrance Width (mm)
2800	2980	2300-3300	300-600	2600-3900	1218
3000	3180				1318
3200	3380				1418
3400	3580				1518
3600	3780				1618
3800	3980				1718
4000	4180				1818
4200	4380				1918
4400	4580				2018
4600	4780				2118
4800	4980				2218

---
