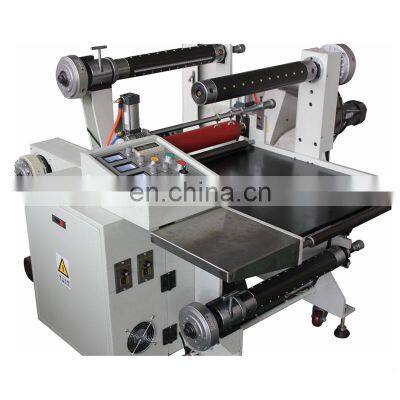

Plastic film paper fabric PE foam sheet laminating machine

Product Description

Product Description
Plastic film paper fabric PE foam sheet laminating machine Functional Characteristics:1.Magnetic powder control the unwind and rewind tension.2.Frequency conversion is used for speed regulation of the main motor.3.The cylinder control the rubber roller up and down.4.Automatic meter counting,stable laminating,fast,high precision,low wastage,and easy operation.5.Optional:1.Photoelectric tracking system to keep the unwind material in line.2.Slitting function.3.Hot laminating function.4.Sheet laminating function.5.Can make as your requirements. Specification:ModelDP-420DP-650Max feeding width420mm 650mmUnwinding diameter400mm400mmRewinding diameter450mm450mmShaft diameter 3inch3inchPrecision±0.3mm±0.3mmTotal power1.5kw2.2kw Configuration:Unwinding shaft : 3 inch inflatable shaft 2 pcsRewinding shaft : 3 inch inflatable shaft 1 pcsMagnetic brakes : 2 set Magnetic clutch : 1 setLaminating motor: 1set Laminating roller : 2 (PU material)Air cylinder : 2 pcs

---
