High-Efficiency Brass Zinc Faucet Polishing Machine for Factories

Product Description

High-Efficiency Brass Zinc Faucet Polishing Machine for Factories
B105 is a single-head automatic polishing equipment, which is for the outer surface of the flat product. Kinds of materials such as brush, zinc, aluminum, stainless steel, and iron can be polished. Please tell me which material you want to polish, it will be suitable for different consumables.




Features:
1:Automatic polishing force compensation system, ensures stable polishing quality.
2:Automatic spray wax
3:Automatic cloth wear compensation
4:Automatic fault alarm

Technology advantage:
1: The entire moving platform moves to the bottom of the cloth wheel by the bottom cylinder, and the cloth wheel is pressed down to the workpiece. Then it starts to polish
2: There is a swing cylinder under the moving table to swing it so as to eliminate the grain during the polishing process.
3: The total working process was controlled by the PLC
4: The worker only installs the workpiece, presses the button, and picks up after polishing.

Design advantage:
1: It is easy to control the machine when you want to change the size of the workpiece. You just need to modify the parameter on the touchscreen. We have a polishing instruction manual to teach you how to modify it.
2: The machine also has an automatic compensation function. Its data can be adjusted by the touchscreen.
3: There is a circular tube interface behind the machine's cloth wheel cover, is for connecting the dust pick-up hose. When manufactured, connect the negative pressure dust collection equipment and suck the polishing dust.

Suitable: Kinds of lock panel, lock handle, door lock, metal part, and so on.

Parameter:

Model	YT-B105
Item	Lock handle automatic polishing equipment
Power	15KW
Speed	About 10-15s depending on the shape
Dimension	2400*1500*1900 mm
Effect	Bright, mirror, brush
Net weight	About 7tons
Voltage	AC380V/50Hz
Pressure	0.7Mpa

Package:

Quick Details:
Type: metal automatic polishing machine

Condition: New

CNC or Not: Not

Place of Origin: Guangdong, China

Brand Name: Yatai

Voltage: AC380V/50Hz

Dimension(L*W*H):2400*1500*1900 mm

Power (kW): 15KW

Key Selling Points:
Automatic
Applicable Industries: Kinds of lock panels, lock handles, door locks, metal parts, and so on.

Machine Type: Lock handle automatic polishing equipment

Machine size:2400*1500*1900 mm

Machine Voltage: 15KW

Rated Power: AC380V/50Hz

Product name: Door handle lock automatic polishing equipment YT-B105

Supply Ability

Supply Ability:10 Piece/Pieces per Month

Packaging & Delivery

Packaging DetailsWooden Case

Port Guangdong CHINA

Lead Time :

Quantity(Pieces)1 - 5 30 days (Est. Time)

>5 Negotiable

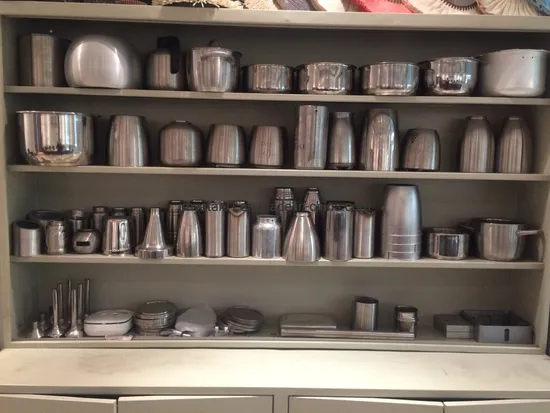

Polishing product :


Welcome to inquire about our business by phone or in person.

Including content :

Price, Product specification, model, Price terms, place of origin, Samples including prototypes and models, Min. Order, Lead Time, Supply Ability, Terms and conditions of sale and purchase, Packaging & Delivery, and Management Certification.

---
