Hot Air Circulating Dehumidify Automatic Food Dehydrator Banana Chips Mango Vegetable Dryer Fruit Drying Vegetable Dryer

Product Description

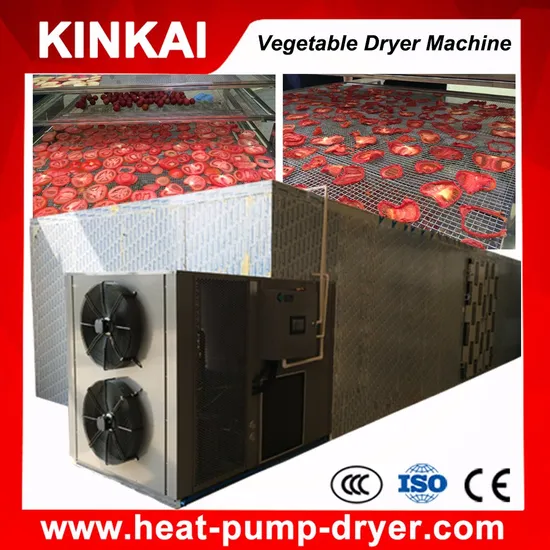

What Are KINKAI Heat Pump Vegetable Drier?
KINKAI Heat pump vegetable drier takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried. This kind of dryer is mainly composed of heat pump dryer and drying chamber. This dryer will be controlled by touch screen controller, and the temperature can be adjusted. It has low electric consumption.
Technical Parameters

Double Dryers + Drying Chamber
Model	Unit	JK03RD (x2)	JK06RD (x2)	JK12RD (x2)
Power Input	KW	9.6	17	30
Power Supply	V/PH/HZ	380V/3PH, 50/60HZ	380V/3PH, 50/60HZ
		220V/1PH, 50/60HZ
Rated Current	A	19.2A(380V), 44A(220V)	34	60
Heating Capacity	KW	21	42	84
Cooling Capacity	KW	15.6	36	64
Dehumidify	L/H	24	50	100
Max. Temperature	ºC	≤75	≤75	≤75
Working Condition	ºC	0-43	0-43	0-43
Electric Shock Protection Grade		I	I	I
Max. Exhause Pressure	Mpa	3	3	3
Noise	dB(A)	≤75	≤75	≤75
Power Consumption/ H	KWH	9.6	17	30
Electric Heater	KW	6	12	24
Blowing Type	/	Horizontal Blowing 360ºC
Dimension Of Dryer	MM	1675x860x1280	1760x1060x1280	2120x1360x1590
Weight	KG	295x2	385x2	540x2

Features of KINKAI Vegetable Drier
1, Energy saving and environment protection
Adopt close dehumidify + circulating drying type, saving operating cost;
Without waste gas and waste heat pollution, low noise
2, Stable property and operating easily
Touch screen full automatic control
Different materials with different drying type, adopt PLC control, can setting different drying curve, suitable for drying different materials.
3, Second waste heat recovery technology(patent)
Adopt air to air heat exchanger dehumidify and recovery waste heat at the same time, saving energy more than 40%.
4, Accurate control temperature and humidity
According to different material setting different drying curve, the heat pump dryer can control the drying chamber temperature between 10~75C.
5, Horizontal Blowing 360ºC
By using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so ensure a high drying efficiency and save energy, lead to a uniform drying.
6, It's batch operation, so can adjust process condition anytime. Thus can change product from time to time
7, Dry material in tray, easy for load and unload, not easy cause any damage for the raw material, clean conveniently.
Recommend Dryer+Drying Chamber Sizes

Item	Description	Product Capacity	Drying Chamber size
1	One unit JK03RD dryer + drying chamber	300Kg / batch	4000*2000*2200mm
2	One unit JK06RD dryer + drying chamber	600Kg / batch	6000*2800*2200mm
3	One unit JK12RD dryer + drying chamber	1000Kg / batch	6000*3000*2200mm
4	Two units JK03RD dryers + drying chamber	1200Kg / batch	7000*2200*2200mm
5	Two units JK06RD dryers + drying chamber	1500Kg / batch	10000*2800*2200mm
6	Two units JK12RD dryers + drying chamber	2500Kg / batch	10000*3000*2200mm

Warm prompt: We can make any drying chamber sizes as your required.
Our Company
Packing and Delivery
For heat pump dryer parts---with plywood
For drying chamber +trolleys
If shipped with 20ft container or 40ft container, no packing
If shipped with LCL( less than container load), packed in plywood
Our Service
A. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need. B. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
If you are interested in our heat pump dryer, please contact us for more information, such as catalogue, video,etc.
