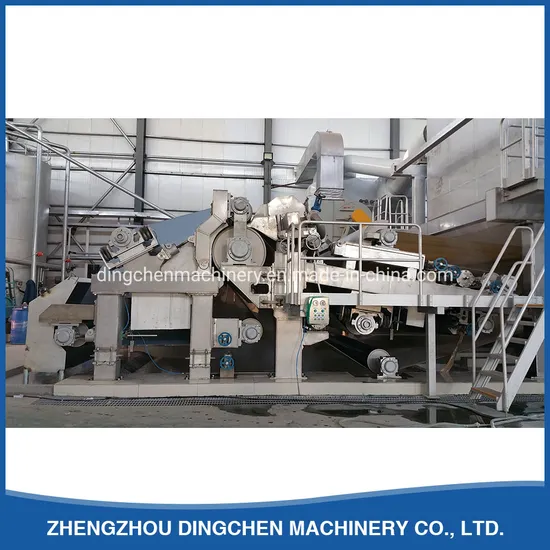

2100mm High Quality Toilet Paper Machine

Product Description

2100mm High Quality Toilet Paper Machine
I.Technical parameter:

1.output paper	tissue paper/toilet paper ;
2. raw material	waste paper or wood pulp ;
3.capacity	8 ton per day;
4. net paper width	2100mm;
5.cooper mesh width	2400mm
6.output paper weight	17-30g/m2;
7. rail gauge	2800mm;
8.working speed with paper	120-160m/min
9.working speed without paper	200m/min
10. drive way	AC variable frequency adjust speed &section drive;

II.the main structures and specification:
1.cylinder section:
1800mm×2400mm stainless steel cylinder 1set,
Net pressure tank sealed 1 set,
500mm×2400mm couch roll 1set,
coated by rubber,rubber shore hardness 38±2.
2.dryer section:
3000mm×2400mm dyer 1 set,
600mm×2400mm touch roll 1set,
rubber shore hardness 90±2.Pneumatic pressure device.Dryer with double layer breath type exhaust hood and 2 pneumatic scrapers.
3.winding paper part:
900mm*2400mm winding paper cooling cylinder 1 set,winding paper on cooling cylinder.The power is 11 kw,4 grade.1 set.
4.drive controlling part:
AC variable frequency adjust speed &section drive

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
