Automatic Straw Making Machine Tube Making Machine

US$17,500.00
1-2 Sets
US$7,500.00
3+ Sets

Basic Info.

Model NO.
200model
Paper Core Usage
Paintings Packaging, Industry
Tube Machine Type
Drawing Machine
Gumming Type
Double Side
Layers of Roll Paper
3 Layers
Reelpipe Speed
12 - 18m/minute
Wall Thickness of Paper Tube
0.3-1mm
Certification
CE, ISO9001
Condition
New
Model
PS-40
Paper Layer
3 Layers
Inner Diameter
4.5-12mm
Straw Thickness
0.3-1mm
Capacity
40m/Min.
Working Air Pressure
0.6MPa
Working Space
7000X5000mm
Optional
Stainless Steel Body
Transport Package
1. Inner Package: Stretch Film 2. Outside Package:
Specification
3500x1500x1200mm
Trademark
YDF
Origin
China
Production Capacity
5 Sets/Month

Packaging & Delivery

Package Size
500.00cm * 500.00cm * 800.00cm
Package Gross Weight
5000.000kg

Product Description

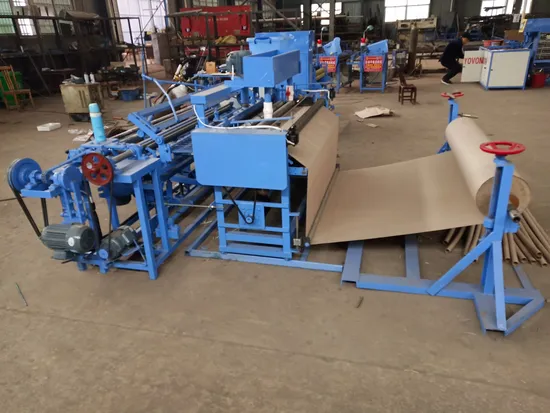

Automatic Drinking Beverage Paper Straw Making Machine
YDF-40 Paper drinking straw making machine is used to producing different sizes of paper straws.
1. This machine adopted with PLC controller.
2. Cutting system adopted with servo motor from Siemens from Germany. This system has higher accuracy and higher efficiency.
3. Machine body and main spare parts are made by stainless steel instead of painting.
Technical parameter
Model
 PS-40
Paper Layer
 3 layers
Inner Diameter
 4.5-12mm
Straw Thickness
 0.3-1mm
Capacity
 40m/min.
Working Air Pressure
 0.6Mpa
Power
 6 KW
Weight
 1800 KG
Machine size
 3500x1500x1200mm
Working Space
 7000x5000mm
Optional
 Stainless steel body
Straw collector

Configuration list
Name
 Brand
 Quanity
Motor
 Siemens(1.5KW)
 2
Inverter
 Schneider
 1
Electric Components
 Schneider
 1
Pneumatic Components
 AIRTAC
 5
Servo Motor
 Schneider
 1
Servo Driver
 Schneider
 1
