Industrial Crane Lifting Magnet for Steel Plates

Product Description

Industrial Crane Lifting Magnet for Steel Plates
Brief Introduction:
It is made of high-energy magnetic material (NdFeB) adopting scientific magnet circuit theory featuring huge attraction force, compact, light dead-weight and convenient and safe for operation. It is an ideal energy-economizing and more convenient lifter than the electromagnet lifter which must be equipped with complicated link-up units and power supply backup.
Specifications:
-- using ratchet wheel
--attracting and releasing the material in automatic cycle
Overall dimension drawing :

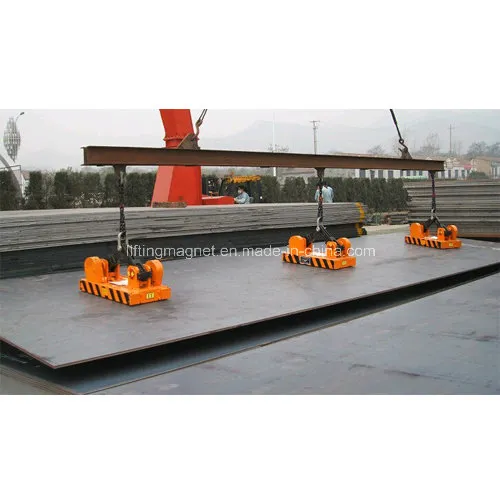

Product picture
Technical Data:

Model	Rated Lifting Capacity (kg)		Overall dimension(mm)								Test Max. pulling-out force(kg)	N. W.
			A	B	C	D	E	F	G	H		kg
YC2-1	1000		686	237	768	432	28	55	107	481	4000	200
YC2-1.5	1500		762	280	844	470	28	53	109	453	5500	245
YC2-2	2000		762	328	844	518	28	53	109	453	7000	270
YC2-3	3000		862	400	944	623	36	70	126	669	10500	380
YC2-5	5000		1022	400	1040	615	36	70	133	700	15000	490

Shengang Equipment:
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.

---
